Eaton UTS7GN1412PW Receptacle - IP68/69K Waterproof
Part Number: UTS7GN1412PW
Quick Summary
Eaton UTS7GN1412PW is a rugged plastic waterproof IP68/69K receptacle for harsh industrial environments. When wiring in wet, dusty, or high-vibration settings, traditional connectors fail or require frequent maintenance. This UTS series meets IEC 61984, UL 1977, and CSA-C22.2 No.182.3, with IP68 protection and a 12‑pin layout to support reliable multi-signal harnessing. Its lightweight polyamide insert and jam-nut design help shorten installation time and reduce field service costs, while delivering robust compatibility with standard backshell components.
Product Information
Extended Description

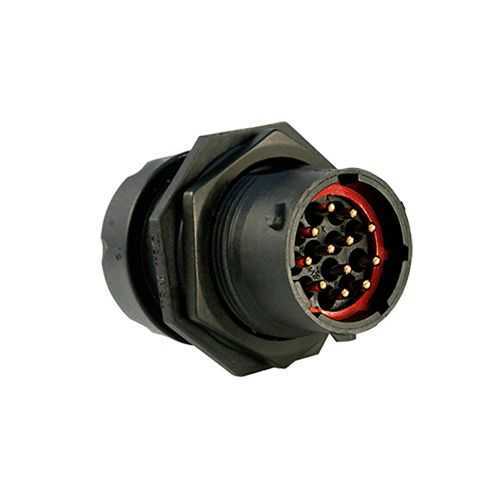

UTS7GN1412PW Eaton: Plastic jam nut receptacle, with nut and grommet backshell, for 12 male contacts, IP68/69K, keying W; UTS7GN1412PW
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7GN1412PW
Product Length/Depth
43 mm
Product Height
34.9 mm
Product Width
34.9 mm
Product Weight
16.4 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details)
Current rating
10 A UL 10 A IEC
Fitted with:
First mate last break capability(optional) Last mate first break capability(optional)
Environmental conditions
Fire & Smoke Flammability rating UL94 V0 REACH Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 RoHS
Environmental resistance
Resistant against gasoline Resistant against acid bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz Resistant against basic bath Resistant against oil Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
10 A IEC 10 A UL 7 A CSA
Test voltage
600 V CSA 63 V IEC 600 V UL
Backshell angle
Straight
Backshell type
Single wire Backshell
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
12
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
12
Number of cavity #16
12
Nut material
Aluminium
Salt spray
500 hour
Feature: IP68/69K waterproof protection with a jam-nut receptacle and grommet backshell. Business Impact: Ensures reliable operation in washdown, dust-prone, and wet environments, reducing unexpected downtime. Application: Outdoor equipment, food processing lines, and mobile machinery where exposure to water and debris is routine. Feature: 12-position layout with crimp contacts. Business Impact: Enables a high signal density in a single connector, lowering harness complexity and assembly time. Application: Machine control panels and field wiring where multiple sensors and actuators converge. Feature: 1/3 Bayonet coupling and straight backshell. Business Impact: Fast, secure mating with straightforward maintenance and alignment. Application: Robotic cells and temporary or modular installations where quick field servicing is beneficial. Feature: Wide operating temperature range (-40 °C to 105 °C). Business Impact: Maintains performance across extreme climates and thermal cycles, reducing failures due to temperature. Application: Cold storage, outdoor equipment, and industrial processes with temperature variance. Feature: Polyamide insert and plastic shell construction. Business Impact: Lightweight yet durable, with chemical and UV resilience for long service life. Application: General industrial automation where weight and environmental exposure matter. Feature: Backshell, nut, and grommet backshell included. Business Impact: Simplifies installation and sealing, improving installation consistency and IP integrity. Application: Panel mounting and field assemblies requiring a complete, ready-to-install solution.
