Eaton UTS7GN1492P Receptacle - IP68/69K Waterproof
Part Number: UTS7GN1492P
Quick Summary
UTS7GN1492P is a plastic waterproof receptacle designed for 12-pin power and signal connections in harsh industrial environments. This Eaton Souriau connector helps prevent moisture ingress and field failures that disrupt automation lines. With IP68/69K protection and RoHS/REACH compliance, it performs reliably where other connectors fail. It carries a 10 A current rating and supports up to 250 mating cycles, making it suitable for lifecycle-intensive equipment. The unit ships as a jam-nut receptacle with backshell, simplifying installation and sealing in tight spaces. Designed for modular automation systems, it fits Souriau UTS series interfaces and offers straightforward field servicing while meeting IEC 61984, UL 1977, and CSA C22.2 requirements.
Product Information
Extended Description

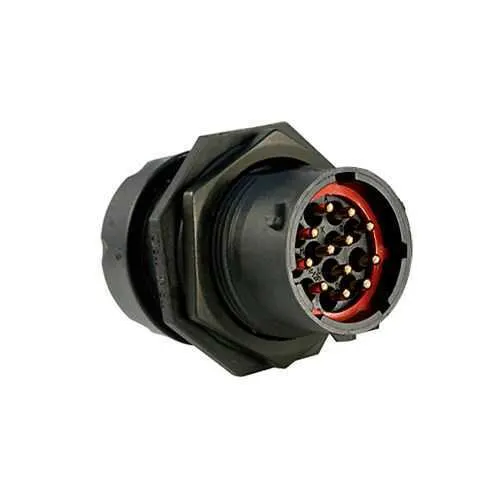

UTS7GN1492P Eaton: Plastic jam nut receptacle, with nut and grommet backshell, for 12 male contacts, IP68/69K; UTS7GN1492P
Product Name
Eaton Souriau UTS series plastic waterproof IP68/69k connector
Catalog Number
UTS7GN1492P
Product Length/Depth
43 mm
Product Height
34.9 mm
Product Width
34.9 mm
Product Weight
16.5 g
Compliances
IEC 61984 (please contact us for more details) CSA-C22.2 No.182.3 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
10 A UL 10 A IEC
Environmental conditions
Fire & Smoke RoHS Fire and smoke rating I2F3 according to NFF 16101 and NFF 16102 Flammability rating UL94 V0 REACH
Environmental resistance
Resistant against mineral oil Resistant against basic bath Vibrations level Per IEC 60512-4 - from 10 to 2000 Hz UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against gasoline Resistant against oil
Test current
10 A IEC 10 A UL 7 A CSA
Test voltage
600 V UL 600 V CSA 63 V IEC
Backshell angle
Straight
Backshell type
Single wire Backshell
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
92
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
12
Number of cavity #16
12
Nut material
Aluminium
Salt spray
500 hour
Feature → Business Impact → Application: The UTS7GN1492P provides IP68/69K sealing and environmental resistance, which translates to dramatically reduced moisture ingress and longer service intervals in demanding environments such as outdoor automation panels and mobile machinery. This directly lowers downtime and maintenance costs while ensuring reliable signal and power transmission in harsh conditions. Feature → Business Impact → Application: With 12 crimp male contacts and a 1/3 bayonet coupling, mating is secure and quick, reducing installation time and minimizing field rework in tight panel spaces common in packaging lines and CNC cabinets. The straight backshell and jam-nut receptacle design support straightforward installation and robust sealing in restricted geometries. Feature → Business Impact → Application: A 10 A current rating (UL/IEC) and a 600 V test voltage rating enable safe, compliant operation for typical control and power circuits, allowing you to consolidate components and simplify procurement for automation projects. Feature → Business Impact → Application: Polyamide insert and plastic shell deliver corrosion resistance and cost efficiency, while mating cycles of 250 ensure durable performance across asset lifecycles, ideal for conveyor systems, material handling, and agricultural equipment. Feature → Business Impact → Application: The unit’s operating range from -40 °C to 105 °C, resistance to oils and UV exposure, and RoHS/REACH compliance provide confidence in outdoor installations, marine-adjacent machinery, and hazardous workshop environments, supporting long-term reliability and regulatory adherence.
