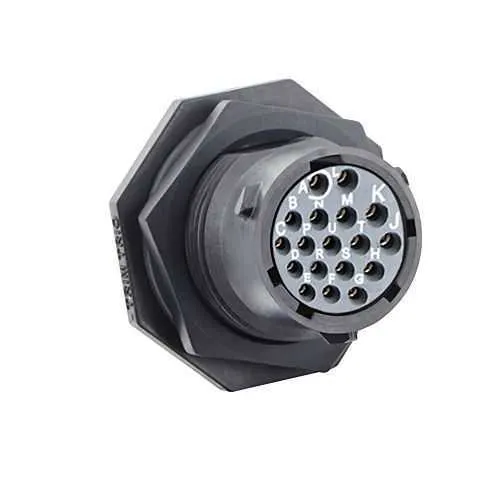

Eaton UTSX714D18SX32 Receptacle - IP68/69K Bayonet
Part Number: UTSX714D18SX32
Quick Summary
Eaton UTSX714D18SX32 receptacle provides a rugged circular bayonet connection for sealed industrial equipment. In compact layouts, maintaining IP68/IP69K integrity during frequent mating cycles is a common challenge. With RoHS compliance, an operating range from -40 °C to 105 °C, and a rated 250 mating cycles, this jam-nut receptacle offers durable performance in harsh environments. For PCB-level integration, it features 18 PCB contacts with gold-flash plating delivered mounted, eliminating extra assembly steps. The combination of a plastic shell, D18 layout, and no backshell option simplifies installation while reducing cost and inventory complexity for automation OEMs and maintenance teams. Its keying X ensures correct mating orientation, boosting field reliability.
Product Information
Extended Description
UTSX714D18SX32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 18 female PCB contacts, IP68/69K in unmated conditions, keying X; UTSX714D18SX32
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX714D18SX32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
22 g
Environmental conditions
RoHS
Connector accessory option
No backshell possibility
Connector orientation
X
Connector type
Receptacle
Contact delivery
Delivered with the connector, mounted
Contact gender
Socket (Female)
Contact plating
Gold flash
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D18
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
18
Number of cavity #20
18
Salt spray
500 hour
Sealed performance is a core feature: IP68/IP69K sealing in unmated conditions guards against water and dust ingress even after repeated coupling. This reduces field failures in washdown and outdoor installations, delivering longer asset life and lower maintenance costs. It is ideal for sensors, actuators, and control modules in manufacturing lines where exposure to moisture and temperature swings is routine. The 18 PCB contacts with gold-flash plating provide reliable signal integrity and corrosion resistance in vibration-prone environments. This improves solder joints and reduces intermittent connectivity, which translates to fewer downtime events and better data integrity for PLCs and motor drives. 1/3 Bayonet coupling with jam-nut receptacle enables fast, secure mating without requiring backshells. This reduces installation time on crowded control panels and simplifies field maintenance, while the X-keying aids correct orientation during assembly. Wide operating temperature (-40 to 105 °C) and RoHS compliance ensure suitability for harsh industrial settings and regulatory compliance. The 250 mating cycles guarantee lifecycle durability in high-cycling applications such as conveyor systems and robotic cells. Lightweight plastic shell (shell size 14) at 22 g, with D18 layout, contributes to compact footprints and lower overall assembly costs. Delivered with the connector mounted and a jam-nut receptacle design streamlines sourcing and reduces inventory complexity for automation integrators.
Get a Quick Quote for a Eaton UTSX714D18SX32
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX714D18SX32?
Enquire Now
FAQs
The UTSX714D18SX32 uses a D18 layout with 18 PCB contacts and a jam-nut receptacle. Plan a 18-pin footprint that aligns with the PCB pads and soldering approach, ensuring the pads match the 18 contact positions. The X keying helps prevent misalignment during mating, and there is no backshell accessory required, which simplifies panel cutouts and reduces installation time in crowded enclosures.
Operating temperature spans from -40 °C to 105 °C, supporting extreme environments. The IP68/IP69K sealing rating applies to unmated conditions, providing robust ingress protection in washdown and outdoor settings. With a rated 250 mating cycles, you can plan maintenance around reliable re-mating intervals, reducing unexpected failures and downtime in automated lines.
This receptacle excels in industrial automation, robotics, packaging, and sensor/actuator interfaces where harsh conditions and frequent field servicing occur. Its sealed design, 18 PCB contacts, and lightweight plastic shell suit compact control panels, harsh washdown environments, and vibration-prone machinery, delivering dependable signal integrity and quick field maintenance.
Key compliance includes RoHS for restricted hazardous substances and IP68/IP69K sealing in unmated conditions. The connector’s design supports operation across a wide temperature range and high cycling, aligning with common industrial regulatory expectations for safety and environmental responsibility in automation applications.
Delivered with the connector mounted and configured as a jam-nut receptacle, it minimizes on-site wiring work and assembly steps. The 18 gold-flash PCB contacts improve long-term reliability, reducing maintenance and downtime. Its lightweight plastic shell and no backshell option simplify inventory management and sourcing, delivering tangible lifecycle cost savings for automation projects.
