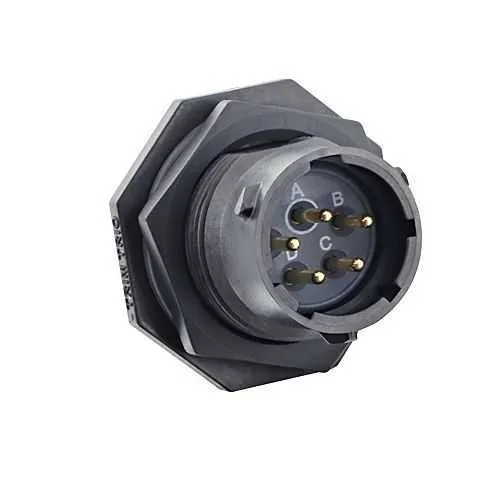

Eaton UTSX714D5P Plastic Circular Bayonet Connector - IP68
Part Number: UTSX714D5P
Quick Summary
The Eaton UTSX714D5P is a plastic circular bayonet connector for robust PCB connections in harsh industrial environments. Engineers often struggle with ensuring IP68 sealing, reliable mating cycles, and space-efficient layouts in compact assemblies. This connector delivers IP68/69K sealing in unmated conditions and RoHS compliance, paired with a 5-cavity PCB contact arrangement, a 24.5 mm depth, and a 30.2 mm footprint. With 250 mating cycles and a jam-nut receptacle design, it minimizes maintenance and rework in high-vibration settings. The no-backshell option reduces part count and simplifies installation in tight enclosures, while the 1/3 bayonet coupling speeds field assembly for automation equipment and robotics.
Product Information
Extended Description
UTSX714D5P Eaton: Jam nut receptacle, without backshell, with 5 male PCB contacts, IP68/69K in unmated conditions; UTSX714D5P
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX714D5P
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
17 g
Environmental conditions
RoHS
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Delivered with the connector, mounted
Contact gender
Pin (Male)
Contact plating
Gold flash
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D5
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
Feature IP68/69K sealing in unmated conditions → Business Impact protects against dust, water, and washdown, reducing field failures and downtime; Application ideal for harsh environments like process automation and outdoor equipment. Feature five PCB contacts with gold-flash plating → Business Impact ensures reliable electrical performance and corrosion resistance; Application supports robust control panels and sensor interfaces. Feature compact footprint with 24.5 mm depth and 30.2 mm width (shell size 14) → Business Impact enables dense panel layouts and easier installation in limited spaces; Application fits tight automation enclosures. Feature jam-nut receptacle with no backshell option → Business Impact lowers parts count and simplifies assembly, reducing installation time; Application is suited for streamlined machine builds. Feature 250 mating cycles → Business Impact improves lifecycle reliability in robotics and conveying systems; Application reduces maintenance cycles and replacement costs. Feature RoHS compliance and gold-plash contacts → Business Impact helps meet regulatory requirements and long-term corrosion resistance; Application supports global deployments in regulated markets.
