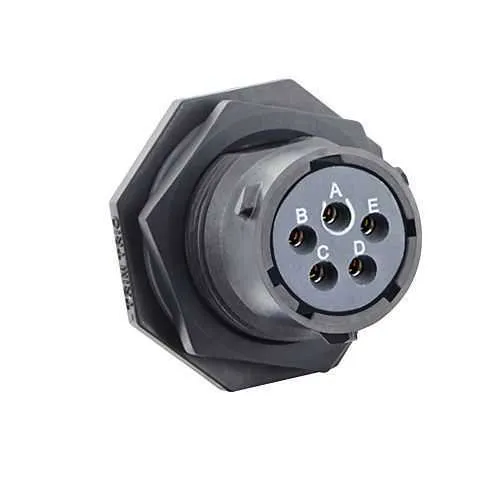

Eaton UTSX714D5SW32 UTSX connector - IP68/69K

Feature → Business Impact → Application. The 1/3 Bayonet coupling provides rapid and repeatable mating, reducing assembly time on production lines and service calls, especially in limited-access panels where downtime costs add up. This translates to higher line throughput and lower maintenance costs in packaging, material handling, and process automation. The 5 PCB contacts with gold flash plating ensure low contact resistance, improved corrosion resistance, and reliable signal integrity for sensing and control loops, even in humid environments. Use in motor drives or PLC backplanes where consistent electrical performance is mission-critical. The jam nut receptacle combined with a W orientation enables stable mounting in panel cavities, simplifying mechanical alignment and reducing rework during installation. Lightweight plastic shell (shell size 14) keeps weight and material cost down without compromising durability, ideal for multi-channel signal and small power applications. Operating temperature range from -40 °C to 105 °C supports outdoor equipment, food processing lines, and harsh factory floors. With RoHS compliance and a guaranteed 250 mating cycles, the design delivers predictable lifecycle performance, enabling cost-effective spares planning and easy supplier qualification. The sealed performance in unmated conditions adds a safety margin for dusty or wash-down environments, supporting cleanroom or automated wash environments where ingress protection is a must. Delivered with the connector mounted, installation is faster and requires fewer on-site steps, improving first-pass assembly quality and reducing commissioning time. Its compact footprint and compatibility with the UTSX family help standardize inventories across plants, boosting procurement efficiency and part traceability.
