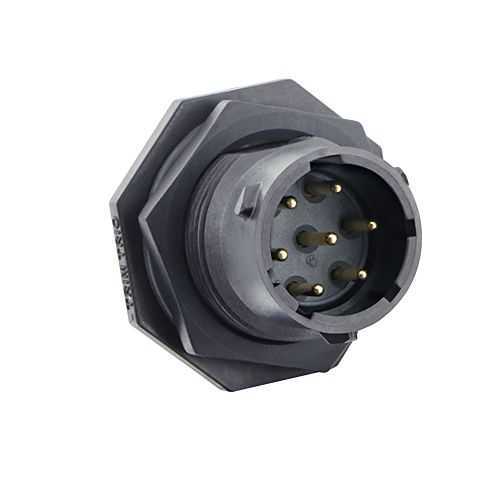

Eaton UTSX714D7P Plastic Circular Bayonet Connector - IP68/69K Receptacle
Part Number: UTSX714D7P
Quick Summary
Eaton UTSX714D7P plastic circular bayonet receptacle is designed for rugged, sealed connectivity in demanding industrial environments. OEM teams often battle ingress, mounting complexity, and downtime when wiring is exposed to washdown cycles. This jam-nut receptacle reduces panel space while delivering reliable 7-pin PCB connections and gold-flash contacts for signal integrity. It offers IP68/69K sealing in unmated conditions and RoHS compliance, helping meet stringent quality and environmental requirements. The compact D7 layout and 1/3 bayonet coupling enable fast, repeatable mating, cutting installation time in high-mix production lines. With a -40 to 105 °C operating range and 250 mating cycles, it supports long service life and predictable maintenance in diverse applications, from automation panels to sensor nets.
Product Information
Extended Description
UTSX714D7P Eaton: Jam nut receptacle, without backshell, with 7 male PCB contacts, IP68/69K in unmated conditions; UTSX714D7P
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX714D7P
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
20 g
Fitted with:
Layout with ground cavity
Environmental conditions
RoHS
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Delivered with the connector, mounted
Contact gender
Pin (Male)
Contact plating
Gold flash
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D7
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
7
Number of cavity #16
7
Salt spray
500 hour
The IP68/69K sealing in unmated conditions provides exceptional protection against dust and water ingress, dramatically reducing field failures in washdown environments and enabling outdoor or process-area deployments. This translates to lower maintenance costs and less unplanned downtime for critical lines. The 7-pin PCB contact arrangement with gold-flash plating ensures reliable signal transmission and corrosion resistance in harsh environments, improving data integrity for sensors and control modules. The 1/3 bayonet coupling design allows quick, repeatable mating and demating, which minimizes downtime during device swaps or routine inspections on busy production floors. The jam-nut receptacle with no backshell option delivers a compact, cost-effective installation with fewer components and simpler field service. RoHS compliance, salt spray resistance, and a wide operating temperature range (-40 °C to 105 °C) strengthen regulatory adherence and operational resilience in demanding settings. The D7 layout and shell size 14 provide a proven footprint that supports easy compatibility with existing harnesses and panel cutouts, reducing rework and engineering time during system upgrades.
Get a Quick Quote for a Eaton UTSX714D7P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX714D7P?
Enquire Now
FAQs
The UTSX714D7P is a 7-contact PCB receptacle designed for direct mounting to a PCB with a D7 footprint. It ships as a jam-nut receptacle with the contacts already mounted, providing a compact footprint and a ground cavity. This simplifies panel installation and alignment, minimizing the need for additional pigtail assemblies.
The 1/3 bayonet coupling allows fast, repeatable mating and un-mating, which reduces downtime during maintenance or field changes. Its straightforward latching action improves reliability in vibration-prone or challenging installations, while maintaining a secure connection that preserves signal integrity in industrial automation and sensor networks.
Yes. The UTSX714D7P is rated IP68/69K in unmated conditions, offering robust ingress protection suitable for washdown environments. It is RoHS compliant, ensuring environmental and regulatory alignment for modern facilities. This makes it appropriate for food, beverage, and process industries where cleanliness and compliance are critical.
The connector operates from -40 °C to 105 °C, covering extreme ambient conditions. It supports up to 250 mating cycles, enabling reliable reconfiguration and field service without frequent replacements. This combination helps maintenance teams predict lifecycle costs and schedule preventive replacements to minimize unplanned downtime.
Investing in the UTSX714D7P can lower total cost of ownership by reducing downtime through quick mating, reducing part count with a jam-nut receptacle, and ensuring long-term reliability with corrosion-resistant gold-flash contacts. The IP68/69K sealing and RoHS compliance support longer service life in harsh environments, improving line uptime and ongoing maintenance efficiency.
