Eaton UTSX714D7P32 Plastic Bayonet Connector - IP68
Part Number: UTSX714D7P32
Quick Summary
Eaton UTSX714D7P32 is a plastic circular bayonet connector designed for rugged automation applications, delivering dependable PCB-to-harness connections in harsh environments. Engineers often struggle with securing fast, vibration-tolerant interfaces that survive washdowns and exposure to the elements. Key protections include IP68/69K sealing for unmated conditions and RoHS compliance, backed by 250 mating cycles for long life. In practice, the compact D7 layout and jam-nut receptacle streamline installation in space-constrained panels while maintaining signal integrity and safety. This combination supports reliable control panel wiring, sensor and actuator deployments, and easier procurement for industrial automation projects.
Product Information
Extended Description

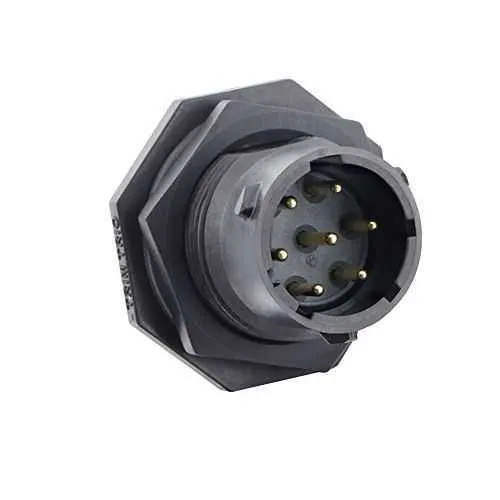

UTSX714D7P32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 7 male PCB contacts, IP68/69K in unmated conditions; UTSX714D7P32
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX714D7P32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
20 g
Fitted with:
Layout with ground cavity
Environmental conditions
RoHS
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Delivered with the connector, mounted
Contact gender
Pin (Male)
Contact plating
Gold flash
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D7
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
7
Number of cavity #16
7
Salt spray
500 hour
Feature: 7 PCB contacts with gold flash plating provide low contact resistance and corrosion resistance. Business Impact: Ensures reliable signal integrity and reduces maintenance costs in high-vibration environments. Application: Ideal for control cabinets and sensor interfaces in automated lines. Feature: IP68/69K sealing in unmated conditions delivers washdown compatibility and dust protection. Business Impact: Extends service life in harsh environments and lowers downtime due to ingress. Application: Food/beverage, pharmaceutical, and outdoor automation where frequent cleaning occurs. Feature: Jam Nut Receptacle with hold-down clips enables secure panel mounting. Business Impact: Improves vibration resistance and simplifies field servicing. Application: Panel assemblies in compact machinery with restricted space. Feature: Plastic shell with 14 shell size maintains lightweight, cost-effective design. Business Impact: Reduces total cost of ownership while preserving performance. Application: Portable or space-limited automation installations. Feature: 1/3 Bayonet coupling allows quick, tool-free mating. Business Impact: Speeds maintenance and routine swaps, lowering downtime. Application: Environments requiring fast connector exchanges. Feature: RoHS compliance and 250 mating cycles provide reliability and sustainability. Business Impact: Supports regulatory compliance and long-term operational planning. Application: Any industrial setting prioritizing regulatory alignment and lifecycle planning.
