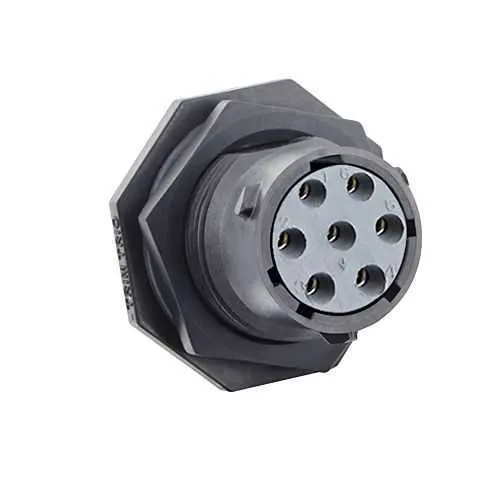

Eaton UTSX714D7S Plastic Bayonet Connector - IP68/69K
Part Number: UTSX714D7S
Quick Summary
Eaton UTSX714D7S is a plastic bayonet connector for rugged, sealed PCB connections in harsh industrial settings. Too many users endure maintenance headaches from unsealed connectors causing moisture ingress and downtime. Operating range from -40 to 105 °C supports equipment in extreme environments, and 250 mating cycles ensure durability in frequent connect/disconnect cycles. IP68/69K unmated protection and RoHS compliance underscore reliability, while the 7-contact PCB layout aligns with standard layouts, enabling fast rollout across existing systems. As part of the UTSX family, its compact D7 layout and sealed design reduce panel space and maintenance costs.
Product Information
Extended Description
UTSX714D7S Eaton: Jam nut receptacle, without backshell, with 7 female PCB contacts, IP68/69K in unmated conditions; UTSX714D7S
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX714D7S
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
21 g
Fitted with:
Layout with ground cavity
Environmental conditions
RoHS
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Delivered with the connector, mounted
Contact gender
Socket (Female)
Contact plating
Gold flash
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D7
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
7
Number of cavity #16
7
Salt spray
500 hour
The UTSX714D7S offers IP68/69K unmated sealing, delivering robust protection against dust and water ingress that translates to reduced maintenance downtime in washdown or harsh production environments. This is paired with a jam nut receptacle design and a 7-pin PCB contact arrangement, which simplifies panel mounting and minimizes the need for additional backshell hardware, cutting installation time and overall costs while maintaining reliable signal integrity. The 1/3 bayonet coupling and D7 layout provide quick, secure mating even in tight enclosures, supporting faster line changes and higher equipment uptime in automation projects. Gold flash contact plating improves corrosion resistance and contact reliability across 7 PCB contacts, supporting demanding signal performance in temperature swings from -40 °C to 105 °C. RoHS compliance further reduces total cost of ownership by easing regulatory compliance across multiple markets. With a shell size of 14 and plastic housing, the unit is lightweight yet durable, designed for 250 mating cycles and long-term field use, while delivered pre-mounted to speed up installation. The option for a ground cavity adds EMI control in sensitive systems, and its orientation N ensures consistent alignment in multi-connector assemblies. This combination of features makes it suitable for compact, high-density control panels where space, sealing, and lifecycle costs matter most.
Get a Quick Quote for a Eaton UTSX714D7S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX714D7S?
Enquire Now
FAQs
For washdown-ready installations, mount the jam nut receptacle firmly on the panel using the Jam Nut Receptacle specification, ensuring the connector is delivered mounted. Leverage IP68/69K unmated protection to resist moisture and debris, and use the D7 layout with seven PCB contacts to simplify routing. Verify RoHS compliance across all connected components to maintain regulatory alignment and minimize maintenance downtime.
Yes. The 7 PCB contacts are gold-flashed to improve corrosion resistance and contact reliability, supporting stable signals across frequencies common in automation interfaces. The 1/3 bayonet coupling provides secure mating, while the RoHS-compliant plastic shell keeps parasitic effects low. The operating range of -40 to 105 °C supports diverse environments, making it suitable for reliable, long-term PCB connectivity.
The UTSX714D7S supports up to 250 mating cycles, which suits frequent connect/disconnect tasks in maintenance-intensive equipment. It operates from -40 °C to 105 °C, enabling use in cold to hot industrial settings. This combination ensures dependable performance in automated lines and field-installed panels while maintaining sealing and signal integrity throughout the lifecycle.
The connector provides IP68/69K sealing in unmated conditions, protecting against dust ingress and high-pressure water exposure typical of washdowns. RoHS compliance further ensures environmental safety. Salt spray robustness is indicated by extended corrosion resistance, and gold-flashed PCB contacts reduce oxidation over time, supporting long-term reliability in tough environments.
Yes, UTSX714D7S is part of the Souriau UTSX series and uses a jam nut receptacle configuration with 7 PCB contacts and a D7 layout. It ships mounted and supports a no backshell option, simplifying installation. The orientation is N, facilitating consistent alignment in multi-connector assemblies and ensuring compatibility with existing UTSX-based systems.
