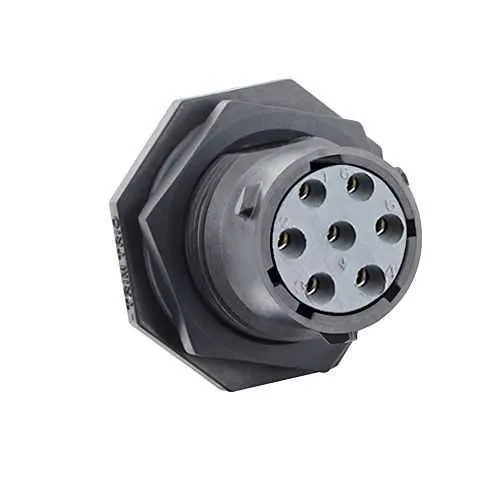

Eaton UTSX714D7S32 Plastic Circular Bayonet Connector - IP68/IP69K
Part Number: UTSX714D7S32
Quick Summary
Eaton UTSX714D7S32 is a plastic circular bayonet connector designed for rugged PCB mounting in harsh industrial environments. When space is tight and exposure to dust, water, or chemicals is a concern, reliable mating and ingress protection matter most. This family delivers IP68/69K unmated protection and RoHS compliance to support long equipment lifecycles and regulatory alignment. Its 7 PCB contacts with gold flash, jam nut receptacle design, and absence of a backshell option simplify installation and reduce field-maintenance costs, while the compact D7 layout fits compact panels. This makes it a practical choice for automation controllers, servo drives, and rugged sensors.
Product Information
Extended Description
UTSX714D7S32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 7 female PCB contacts, IP68/69K in unmated conditions; UTSX714D7S32
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX714D7S32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
21 g
Fitted with:
Layout with ground cavity
Environmental conditions
RoHS
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Delivered with the connector, mounted
Contact gender
Socket (Female)
Contact plating
Gold flash
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D7
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
7
Number of cavity #16
7
Salt spray
500 hour
Feature: Seven PCB contacts with gold flash plating deliver low contact resistance and stable signal transfer. Business Impact: Improves reliability in high-cycle automation applications and reduces intermittent faults. Application: Ideal for multi-signal control panels in industrial automation environments. Feature: IP68/69K ingress protection in unmated conditions. Business Impact: Protects sensitive contacts from dust and water during washdowns and harsh operation. Application: Outdoor machinery, wash-down areas, and food/beverage processing lines. Feature: 1/3 Bayonet coupling with a D7 layout. Business Impact: Enables quick mating and a compact footprint, reducing service time and panel space. Application: Conveyor systems and space-constrained control cabinets. Feature: Jam Nut Receptacle with hold-down clips; no backshell option. Business Impact: Simplifies mounting and minimizes parts count, lowering installation costs. Application: Tight-panel installations where backshells are impractical. Feature: Wide operating temperature range -40 °C to 105 °C and 250 mating cycles. Business Impact: Delivers robust performance in extreme environments with predictable lifecycle costs. Application: Manufacturing floors, automotive, and outdoor equipment. Feature: RoHS compliant materials and construction. Business Impact: Supports regulatory compliance and sustainability goals across global markets. Application: Any installation requiring green product certifications.
Get a Quick Quote for a Eaton UTSX714D7S32
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX714D7S32?
Enquire Now
FAQs
The unit is a jam nut receptacle supplied with hold-down clips and designed for panel mounting without a backshell. Plan for a clean panel cutout, ensure proper gasketing if required by the environment, and rely on the jam nut and clips to secure the connector. This keeps installation simple and minimizes extra parts in tight spaces.
The connector provides seven PCB contacts with gold-flash plating, configured as a socket (female) contact type. It supports up to 250 mating cycles, operates from -40 °C to 105 °C, and uses a 1/3 bayonet coupling with a D7 layout, suitable for compact control panels and multi-signal interfaces.
Yes. It delivers IP68/69K protection in unmated conditions, protecting internal contacts during exposure to dust, water, and washdowns. RoHS compliance further ensures regulatory alignment. It is well-suited for outdoor, manufacturing, and wash-down environments where reliable sealing and long-term performance are required.
The UTSX714D7S32 is RoHS compliant, aligning with global environmental and regulatory expectations. While CE labeling is not specified in the provided data, RoHS conformity supports restricted substances control in many regional markets, aiding sustainability initiatives and compliance documentation for manufacturing operations.
With 250 mating cycles, robust IP68/69K protection, and a simplified jam nut receptacle design, maintenance is reduced and field service time is minimized. The no-backshell configuration lowers parts cost and installation complexity, delivering a favorable total cost of ownership for automation panels and rugged equipment lifecycles.
