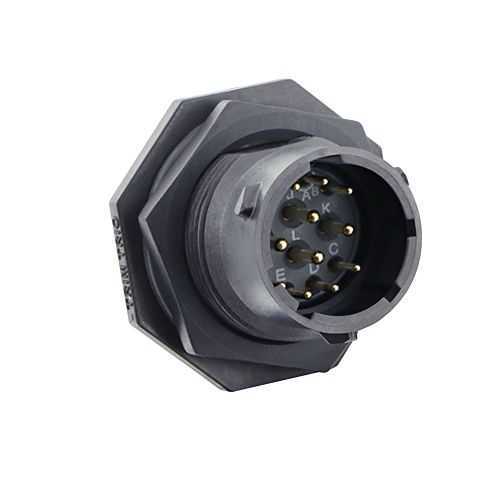

Eaton UTSX714E12PX Plastic bayonet connector - IP68/69K
Part Number: UTSX714E12PX
Quick Summary
The Eaton UTSX714E12PX plastic bayonet connector enables rugged, plug-and-play mating for harsh industrial automation environments. In field installs, moisture ingress, misalignment, and tool-dependent assemblies can drive downtime and rework. IP68/69K sealing in unmated conditions, RoHS-compliant materials, and a robust 250 mating-cycle rating provide reliable performance in challenging conditions. As part of the Souriau UTSX family, this jam-nut receptacle supports a compact, durable interconnect solution with 12 gold-flash solder contacts, delivering consistent signal integrity and service life while helping OEMs optimize panel space and installation efficiency.
Product Information
Extended Description
UTSX714E12PX Eaton: Jam nut receptacle, without backshell, with 12 male solder contacts, IP68/69K in unmated conditions, keying X; UTSX714E12PX
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX714E12PX
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
15 g
Environmental conditions
RoHS
Connector accessory option
No backshell possibility
Connector orientation
X
Connector type
Receptacle
Contact delivery
Delivered with the connector, mounted
Contact gender
Pin (Male)
Contact plating
Gold flash
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E12
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
12
Number of cavity #16
12
Salt spray
500 hour
Feature: IP68/69K sealing in unmated condition; Business Impact: protects against water and dust ingress in washdown and outdoor environments, reducing field faults; Application: outdoor equipment, food and beverage machinery, and process automation. Feature: 12 gold-flash solder cup contacts; Business Impact: ensures low contact resistance, corrosion resistance, and reliable long-term terminations; Application: high-reliability sensor and power interconnects in tough environments. Feature: 1/3 Bayonet coupling; Business Impact: quick, tool-free mating with strong vibration resistance; Application: on-site panel installations and equipment rearrangements. Feature: Jam Nut Receptacle with no backshell option; Business Impact: compact footprint and simpler mounting in tight spaces; Application: panel-mount assemblies in compact control cabinets. Feature: Operating temperature -40 to 105 °C and 500 hour salt spray; Business Impact: durable performance in extreme temps and corrosive environments; Application: industrial automation, conveyors, and washdown zones. Feature: 12 cavities, shell size 14, and 250 mating cycles; Business Impact: standardized, repeatable interconnects with predictable lifecycle costs; Application: high-volume production lines and OEM assemblies.
Get a Quick Quote for a Eaton UTSX714E12PX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX714E12PX?
Enquire Now
FAQs
The UTSX714E12PX uses a 1/3 bayonet coupling with a jam-nut receptacle design, allowing quick, tool-free mating. The connector is delivered ready to install, and its bayonet mechanism provides reliable alignment and vibration resistance during mating. No backshell is included, which simplifies installation in tight spaces while maintaining a secure connection.
Yes. The part features IP68/69K sealing in unmated condition and RoHS-compliant materials, delivering robust protection against dust and water ingress. Its operating temperature range of -40 to 105 °C and 500 hour salt-spray tolerance further support reliable operation in harsh washdown and outdoor environments.
The connector provides 12 solder cup contacts with gold flash plating, arranged in a 12-cavity E12 layout. Contacts are male pins delivered mounted in the receptacle, suitable for direct solder termination to PCB or cable assemblies, delivering consistent electrical performance and corrosion resistance in demanding settings.
Key specs include a shell size 14, overall dimensions around 24.5 mm depth with a 30.2 mm height and width, and a weight of about 15 g. The design supports up to 250 mating cycles, and the materials are RoHS compliant, ensuring durability and regulatory compliance in industrial environments.
The UTSX714E12PX is part of the Souriau UTSX family, sharing compatible interfaces and mounting footprints. The jam-nut receptacle form factor and no-backshell option enable compact panel installations and straightforward replacement or upgrade within existing Souriau-enabled systems, reducing redesign risk and accelerating time-to-production.
