Eaton UTSX714E12S Plastic Bayonet Connector - IP68/69K
Part Number: UTSX714E12S
Quick Summary
The Eaton Souriau UTSX714E12S is a plastic circular bayonet connector designed for sealed, unmated applications in harsh environments. Engineers often struggle with achieving reliable seals and a compact interface in rugged machinery, especially where space is constrained. This receptacle meets IP68/IP69K sealing in unmated conditions and RoHS compliance, helping prevent ingress and corrosion while supporting long service life. With 12 solder contacts and gold flash plating, it delivers low contact resistance and robust performance. Designed for industrial networks and automation cabinets, it complements the Souriau UTSX series and enables quick, maintenance-friendly installations in moisture-prone or wash-down environments.
Product Information
Extended Description

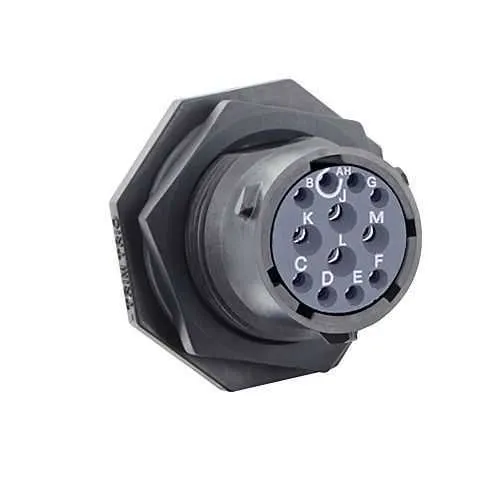

UTSX714E12S Eaton: Jam nut receptacle, without backshell, with 12 female solder contacts, IP68/69K in unmated conditions; UTSX714E12S
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX714E12S
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
17 g
Environmental conditions
RoHS
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Delivered with the connector, mounted
Contact gender
Socket (Female)
Contact plating
Gold flash
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E12
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
12
Number of cavity #16
12
Salt spray
500 hour
Feature : IP68/IP69K sealing in unmated conditions provides superior environmental protection and reduced risk of ingress, enabling reliable operation in wash-down and harsh industrial settings. Business Impact : Lower maintenance costs and fewer field failures translate to higher line uptime and predictable maintenance budgets. Application : Ideal for outdoor automation, packaging lines, and heavy equipment where protection from dust and water is critical. Feature : 12 female solder cup contacts with gold flash plating ensure stable, low-impedance connections even in corrosive environments. Business Impact : Enhanced electrical longevity, minimized signal loss, and reduced replacement costs for control networks. Application : Control panels, sensing networks, and robot end-effectors that demand robust contact performance. Feature : 1/3 Bayonet coupling offers quick, tool-free mating and reliable retention in tight spaces. Business Impact : Faster field assembly and fewer assembly errors, improving installation throughput. Application : Conveyor systems and hydraulic/electrical panels with limited access. Feature : Jam Nut Receptacle with no backshell simplifies mounting and reduces bulk in compact enclosures. Business Impact : Simplified installation and reduced part count, lowering total cost of ownership. Application : Small control cabinets and equipment with space constraints. Feature : Operating temperature range from -40 °C to 105 °C supports diverse industrial environments. Business Impact : Uninterrupted operation across cold starts and hot production cycles, improving uptime. Application : Unprotected outdoor or freezer environments, automotive assembly, and food & beverage equipment. Feature : RoHS compliance and 250 mating cycles provide durability and regulatory confidence. Business Impact : Compliance assurance and predictable lifecycle planning, minimizing replacement cycles. Application : Aerospace-inspired rugged automation, automotive manufacturing, and industrial robots.
