Eaton UTSX714E12SW Receptacle - IP68/69K, 1/3 Bayonet
Part Number: UTSX714E12SW
Quick Summary
Eaton Souriau UTSX714E12SW receptacle provides reliable 12-position solder-contact connectivity for harsh, IP-rated circular connections in industrial equipment. Engineers often wrestle with ingress, corrosion, and downtime when selecting connectors for washdown and rugged environments; this jam-nut receptacle helps mitigate those challenges with robust sealing and field-proven ease of installation. It offers IP68/69K protection and RoHS compliance, backed by the durability of the UTSX series. By aligning with a compact, 14-shell-size design, it supports streamlined assemblies and cost-effective maintenance in automation cells. This combination of sealing, long-life contacts, and straight-through compatibility supports robust, high-uptime automation across robotics, packaging lines, and heavy machinery.
Product Information
Extended Description

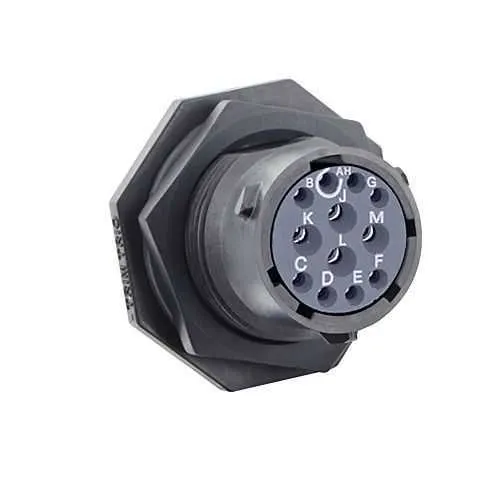

UTSX714E12SW Eaton: Jam nut receptacle, without backshell, with 12 female solder contacts, IP68/69K in unmated conditions, keying W; UTSX714E12SW
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX714E12SW
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
17 g
Environmental conditions
RoHS
Connector accessory option
No backshell possibility
Connector orientation
W
Connector type
Receptacle
Contact delivery
Delivered with the connector, mounted
Contact gender
Socket (Female)
Contact plating
Gold flash
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E12
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
12
Number of cavity #16
12
Salt spray
500 hour
Feature: 12 contact positions with gold-flash solder cup contacts. Business impact: delivers reliable, corrosion-resistant signal integrity with minimal maintenance; Application: control modules and sensor hubs in automated lines. Feature: 1/3 bayonet coupling with jam nut receptacle. Business impact: quick, secure mating and easy field mounting without additional backshells; Application: tight spaces in robotics arms and conveyor systems. Feature: IP68/69K sealing in unmated conditions. Business impact: superior ingress protection reduces washdown-related failures and downtime; Application: food & beverage packaging, outdoor machinery, and washdown environments. Feature: RoHS compliance and plastic shell construction. Business impact: compliant with environmental standards while reducing weight and costs; Application: OEM equipment where weight and regulatory compliance matter. Feature: Operating temperature range -40 to 105 °C and 250 mating cycles. Business impact: resilience under extreme temperatures and extended lifecycle, lowering replacement intervals; Application: harsh industrial automation, molding machines, and harsh production lines. Feature: Shell size 14, layout E12, delivered with the connector mounted. Business impact: compact footprint and streamlined integration with minimal assembly steps; Application: compact control panels and space-constrained automation enclosures. Feature: No backshell option. Business impact: reduces total installed cost and simplifies sourcing; Application: streamlined panel wiring in standard installations.
Get a Quick Quote for a Eaton UTSX714E12SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX714E12SW?
Enquire Now
FAQs
Installation begins with aligning the W orientation and the 1/3 bayonet coupling. The jam nut receptacle is designed to mount directly to the panel; use the jam nut to secure the connector and ensure the mating face remains clean. Since there is no backshell option, rely on proper cable routing and strain relief at the connector to maintain sealing integrity and prevent cable movement from degrading the solder cups.
This receptacle provides 12 solder cup contacts with gold-flash plating, arranged in a 12-position layout (E12). It uses a 1/3 bayonet coupling and offers a mating cycle life of up to 250, with a shell size 14 and a plastic shell. It is RoHS compliant and rated for -40 °C to 105 °C, delivering reliable performance in demanding automation environments.
Yes. The connector is IP68/69K rated in unmated conditions, which provides excellent ingress protection for washdown and outdoor applications. Its lightweight plastic shell and RoHS compliance further support outdoor and harsh industrial deployments, such as robotics, conveyors, and packaging lines that face moisture, dust, and cleaning protocols.
The UTSX714E12SW is RoHS compliant and features IP68/69K sealing for robust protection in challenging environments. While CE or SIL certifications aren’t specified in the product data, its sealing class and environmental compliance align with many industrial applications requiring reliable, regulator-friendly components.
With 250 mating cycles and sealed IP68/69K performance, this connector reduces downtime from ingress-related failures and extends service life in harsh environments. The no-backshell design lowers mounting costs and simplifies sourcing, while the compact shell size supports denser panel layouts, contributing to lower total installed costs and faster maintenance cycles.
