Eaton UTSX714E12SX Plastic Bayonet Connector - IP68/69K
Part Number: UTSX714E12SX
Quick Summary
The Eaton Souriau UTSX714E12SX plastic circular bayonet connector provides rugged interconnects for harsh industrial machinery. Users often struggle with ingress protection and maintenance headaches in washdown environments; this jam-nut receptacle delivers IP68/69K sealing in unmated conditions and a compact, backshell-free installation. The UTSX family is RoHS compliant and supports up to 250 mating cycles, reinforcing reliability in long-life equipment. For procurement and field service, the combination of a 12-contact solder-cup layout, gold-flash plating, and a lightweight plastic shell translates into lower lifetime cost and easier installation across multiple automated systems.
Product Information
Extended Description

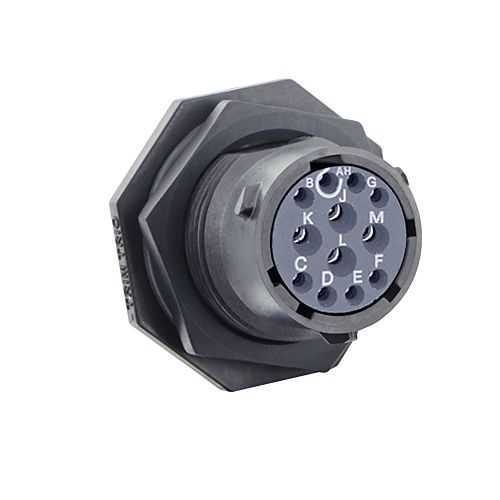

UTSX714E12SX Eaton: Jam nut receptacle, without backshell, with 12 female solder contacts, IP68/69K in unmated conditions, keying X; UTSX714E12SX
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX714E12SX
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
17 g
Environmental conditions
RoHS
Connector accessory option
No backshell possibility
Connector orientation
X
Connector type
Receptacle
Contact delivery
Delivered with the connector, mounted
Contact gender
Socket (Female)
Contact plating
Gold flash
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E12
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
12
Number of cavity #16
12
Salt spray
500 hour
Feature: IP68/69K sealing in unmated conditions enables reliable operation in washdown and dusty environments. Business Impact: Reduces risk of water/particle ingress, lowers maintenance costs, and extends equipment life. Application: Outdoor automation equipment and food-processing lines. Feature: 1/3 bayonet coupling with jam-nut receptacle. Business Impact: Fast, tool-free mating while maintaining a secure connection, minimizing downtime during maintenance. Application: Control panels and robotic stations where quick field service is essential. Feature: 12 solder cup contacts with gold flash plating. Business Impact: Strong electrical performance and corrosion resistance for long-term signal integrity. Application: 12-channel sensor and actuator interconnects in control cabinets. Feature: RoHS compliance and compact shell dimensions. Business Impact: Regulatory compliance with a space-efficient footprint, enabling easier integration in tight enclosures. Application: Compact installations in automated lines. Feature: No backshell option. Business Impact: Simplified, cost-effective mounting in constrained spaces. Application: Machinery housings where backshells are not feasible. Feature: 250 mating cycles rating. Business Impact: Predictable lifecycle and reduced replacement costs. Application: High-cycle automation environments.
Get a Quick Quote for a Eaton UTSX714E12SX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX714E12SX?
Enquire Now
FAQs
It is a jam nut receptacle with 12 female solder cup contacts, 1/3 bayonet coupling, X orientation, and a backless design for compact installations.
Yes, the connector complies with RoHS. It operates from -40 °C to 105 °C, making it suitable for temperature-extreme environments.
Ideal for harsh environments in automated machinery, control panels, washdown outdoor equipment, and robotic systems requiring reliable 12-channel interconnects.
Delivered as mounted on the connector with no backshell option; lightweight plastic shell; 24.5 mm depth and 30.2 mm width/height support compact enclosures.
Drawings are available as UTSX0002AC.pdf from Eaton's site at the provided URL for precise mating dimensions and mounting details.
