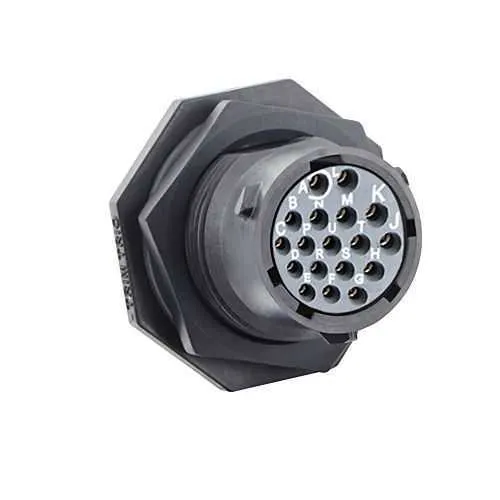

Eaton UTSX714E18SW Plastic Bayonet Connector - IP68/69K
Part Number: UTSX714E18SW
Quick Summary
Eaton UTSX714E18SW is a plastic circular bayonet connector for rugged industrial automation wiring. Engineers frequently confront moisture ingress, corrosion, and misalignment in harsh field environments. It achieves IP68/69K sealing and RoHS compliance, with a jam-nut receptacle design that supports durable, secure connections in dynamic applications. As part of the Souriau UTSX series, this receptacle combines a compact footprint with robust performance across demanding conditions. The 18 gold-flashed solder cup contacts and the 1/3 bayonet coupling deliver reliable electrical contact while reducing installation time and lifecycle costs on mobile equipment and fixed installations alike.
Product Information
Extended Description
UTSX714E18SW Eaton: Jam nut receptacle, without backshell, with 18 female solder contacts, IP68/69K in unmated conditions, keying W; UTSX714E18SW
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX714E18SW
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
20 g
Environmental conditions
RoHS
Connector accessory option
No backshell possibility
Connector orientation
W
Connector type
Receptacle
Contact delivery
Delivered with the connector, mounted
Contact gender
Socket (Female)
Contact plating
Gold flash
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E18
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
18
Number of cavity #20
18
Salt spray
500 hour
Feature: IP68/69K sealing in unmated conditions; Business Impact: protects equipment from water ingress, dust, and washdowns, reducing downtime and service calls; Application: outdoor sensors, wet environments, and heavy-industrial settings. Long-tail keywords: IP68 IP69K sealed circular connector, RoHS compliant connectors. Feature: 1/3 bayonet coupling with W-key orientation; Business Impact: quick, repeatable mating with high vibration tolerance, lowering maintenance time; Application: panel-mount harnesses and mobile equipment. Long-tail keywords: bayonet connectors, quick-mate connectors. Feature: 18 solder cup contacts with gold flash plating; Business Impact: ensures low contact resistance and corrosion resistance, extending service life; Application: high-reliability power and signal paths in automation systems. Long-tail keywords: solder cup contacts, gold flash plating. Feature: Operating temperature −40 to 105 °C; Business Impact: consistent performance across extreme climates, reducing the need for multiple part variants; Application: process environments and outdoor deployments. Long-tail keywords: wide operating temperature, industrial connectors. Feature: Lightweight, compact design with jam-nut receptacle and no backshell option; Business Impact: easier routing in tight panels and faster installation; Application: compact control panels and space-constrained equipment. Long-tail keywords: jam nut receptacle, no backshell, compact circular connector.
Get a Quick Quote for a Eaton UTSX714E18SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX714E18SW?
Enquire Now
FAQs
The UTSX714E18SW is delivered with the connector mounted, and its jam-nut receptacle design simplifies panel mounting. Use the 1/3 bayonet coupling to align the keying W and achieve a secure, vibration-resistant connection with minimal torque. Ensure mating connectors are clean and properly oriented to avoid mis-mating; no backshell option is required for compatible harnesses.
Its IP68/IP69K sealing in unmated conditions provides robust ingress protection against dust and water ingress, ideal for washdown and outdoor applications. The gold-flashed solder cup contacts maintain low contact resistance, while RoHS compliance ensures regulatory alignment in harsh settings, reducing maintenance cycles in demanding automation environments.
Key specs include 18 contacts with gold flash plating, 24.5 mm length, 30.2 mm width and height, and a weight around 20 g. The connector supports up to 250 mating cycles and operates from −40 to 105 °C. RoHS compliance and plastic shell construction further support lightweight, corrosion-resistant usage in industrial environments.
Yes, this receptacle is designed as part of the Eaton Souriau UTSX series, offering compatibility with other UTSX components. It is well-suited for sensors, actuators, and control panels in harsh environments requiring reliable sealing, compact form, and easy assembly in automation and process industries.
The combination of quick, tool-free mating, 18-contact capability, high mating cycles, and IP sealing reduces field downtime and maintenance costs. Lighter weight and smaller footprint cut assembly time, while RoHS compliance minimizes regulatory risk. In services-heavy or outdoor deployments, these factors collectively improve throughput and lifecycle economics.
