Eaton UTSX714E18SX Plastic Bayonet Connector - IP68/69K
Part Number: UTSX714E18SX
Quick Summary
The Eaton UTSX714E18SX is a plastic circular bayonet connector used in rugged industrial wiring applications. Engineers often struggle with achieving reliable sealing, quick mating, and long-term durability in harsh environments. Key certifications and specs include IP68/69K sealing in unmated conditions and RoHS compliance, supporting harsh washdown and regulatory alignment. The Souriau UTSX series design blends compact geometry with robust contact performance, delivering high mating reliability and reduced field maintenance. This translates into faster assembly, lower lifecycle costs, and certified compatibility with common industrial cabling practices while supporting downstream integration of 18-socket configurations for scalable designs.
Product Information
Extended Description

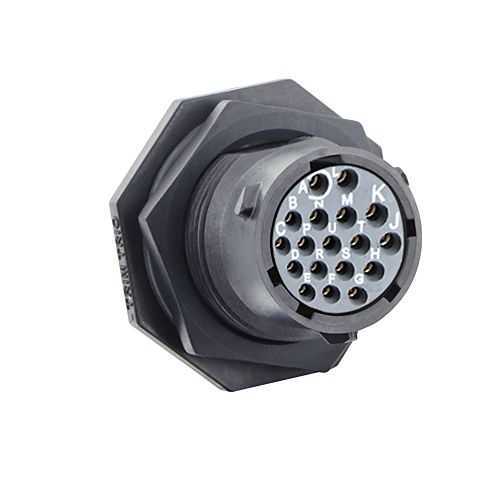

UTSX714E18SX Eaton: Jam nut receptacle, without backshell, with 18 female solder contacts, IP68/69K in unmated conditions, keying X; UTSX714E18SX
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX714E18SX
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
20 g
Environmental conditions
RoHS
Connector accessory option
No backshell possibility
Connector orientation
X
Connector type
Receptacle
Contact delivery
Delivered with the connector, mounted
Contact gender
Socket (Female)
Contact plating
Gold flash
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E18
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
18
Number of cavity #20
18
Salt spray
500 hour
Feature → Business Impact → Application: 1) 18 contact solder cup configuration with gold flash plating provides low contact resistance and durable signal integrity in demanding environments, reducing replacement risk and enabling stable control feedback in automation panels. Application: servo drives and PLC I/O interfaces where precise, repeatable connections are crucial. 2) 1/3 bayonet coupling offers quick, tool-free mating and secure retention, cutting installation time by a predictable margin and minimizing downtime on production lines. Application: field-installed machine harnesses and detachable cable assemblies in conveyors. 3) IP68/69K sealing in unmated conditions delivers superior ingress protection during washdown and high-pressure environments, supporting reliable operation in food processing, beverage, and outdoor automation equipment. Application: outdoor sensor networks and washdown-ready control enclosures. 4) Plastic shell and small form factor (Shell size 14, 24.5 mm depth, 30.2 mm height) enable compact, lightweight harness solutions with easy routing and reduced enclosure footprint. Application: space-constrained robotics and compact control cabinets. 5) RoHS-compliant materials and gold-plated contacts ensure regulatory conformity and extended service life, reducing compliance risk and maintenance costs. Application: any industrial installation subject to environmental and substance restrictions. 6) 250 mating cycles indicate robust lifecycle performance, supporting predictable maintenance planning and total cost of ownership improvements. Application: long-term automation deployments in manufacturing cells and packaging lines.
