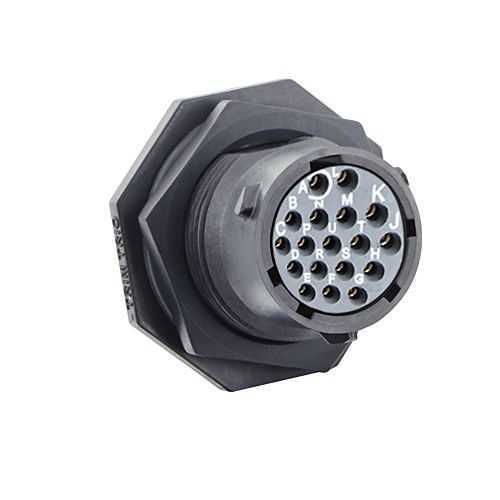

Eaton UTSX714E18SY Plastic bayonet connector - IP68/69K
Part Number: UTSX714E18SY
Quick Summary
The Eaton UTSX714E18SY is a plastic circular bayonet connector for rugged, sealed electrical connections in industrial automation. Design engineers often wrestle with moisture ingress, misalignment, and limited backshell options that complicate field installs. This part offers IP68/69K sealing in unmated conditions and RoHS compliance, helping you meet harsh-environment standards; note that SIL and CE certifications are not specified for this variant, so verify with Eaton if those approvals are required. Its compact 24.5 mm length with 18 gold-flash solder contacts and a jam-nut receptacle design delivers reliable, quick-mating assemblies that reduce maintenance and total cost of ownership.
Product Information
Extended Description
UTSX714E18SY Eaton: Jam nut receptacle, without backshell, with 18 female solder contacts, IP68/69K in unmated conditions, keying Y; UTSX714E18SY
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX714E18SY
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
20 g
Environmental conditions
RoHS
Connector accessory option
No backshell possibility
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Delivered with the connector, mounted
Contact gender
Socket (Female)
Contact plating
Gold flash
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E18
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
18
Number of cavity #20
18
Salt spray
500 hour
Feature: IP68/69K sealing in unmated conditions. Business Impact: Increases protection against moisture and dust during non-mated states, reducing field failures and warranty costs. Application: Ideal for outdoor equipment and enclosures in wet environments. Feature: 18 solder cup contacts with gold flash plating. Business Impact: Ensures low contact resistance and corrosion resistance for dependable signal integrity across control and sensing circuits. Application: Robotics, machine controls, and process automation. Feature: 1/3 Bayonet coupling and jam nut receptacle (no backshell option). Business Impact: Fast, secure mating with simple installation and maintenance; eliminates additional backshell components, reducing part count. Application: Harsh-environment machinery and vehicle harnesses. Feature: RoHS compliant plastic shell with shell size 14. Business Impact: Lightweight, cost-efficient build with reliable environmental compliance across product lifecycles. Application: OEM machinery and packaging equipment. Feature: Operating range -40 °C to 105 °C; 250 mating cycles. Business Impact: Delivers robust performance in extreme temperatures and long service life, lowering downtime and replacement intervals. Application: Industrial plants, outdoor systems, and food-processing lines.
