Eaton UTSX714E7S plastic circular bayonet connector - IP68/69K
Part Number: UTSX714E7S
Quick Summary
Eaton UTSX714E7S plastic circular bayonet connectors deliver rugged, reliable interconnects for industrial automation equipment and control panels. Engineering teams frequently wrestle with sealing integrity, limited mating cycles, and space constraints in compact panel designs. This solution provides IP68/69K protection in unmated conditions and RoHS-compliant construction, helping you meet harsh-environment requirements without multiple accessory variants. The gasketless design and 7-socket configuration streamline harnessing with solder cup contacts, while the 1/3 bayonet coupling speeds assembly. By standardizing on the UTSX series, buyers reduce part diversity and simplify sourcing, maintenance, and lifecycle planning, delivering predictable performance across fleets and reducing downtime across critical manufacturing processes.
Product Information
Extended Description

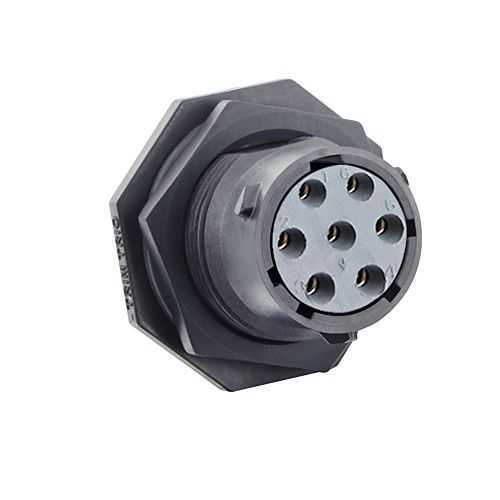

UTSX714E7S Eaton: Jam nut receptacle, without backshell, with 7 female solder contacts, IP68/69K in unmated conditions; UTSX714E7S
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX714E7S
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
20 g
Environmental conditions
RoHS
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Delivered with the connector, mounted
Contact gender
Socket (Female)
Contact plating
Gold flash
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E7
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
7
Number of cavity #12
0
Number of cavity #16
7
Salt spray
500 hour
Feature: 7 solder cup female contacts with gold flash plating ensure low contact resistance and high corrosion resistance. Business Impact: Long-term reliability minimizes failure rates and maintenance costs in harsh environments. Application: Ideal for robotic arms and control panels where consistent, durable signal interconnects are essential. Feature: 1/3 bayonet coupling enables quick, tool-free mating with secure retention. Business Impact: Reduces assembly time and labor costs while enhancing reliability under vibration. Application: Used in automated assembly lines and machine enclosures where rapid field servicing is beneficial. Feature: Jam Nut Receptacle design with no backshell compatible option. Business Impact: Compact footprint simplifies panel integration and reduces part counts, lowering total cost of ownership. Application: Suitable for tight installation spaces in control cabinets and equipment housings. Feature: Plastic shell with 14 shell size and 24.5 mm depth, 30.2 mm width/height. Business Impact: Lightweight, compact geometry facilitates dense wiring looms and modular layouts. Application: Frequently chosen for small-form-factor connectors in distributed automation networks. Feature: Operating temperature range -40 °C to 105 °C and RoHS compliance. Business Impact: Ensures performance across extreme industrial environments and regulatory alignment. Application: Automotive manufacturing, packaging, and process automation where environmental tolerance matters. Feature: 250 mating cycles provide durability for lifecycle maintenance planning. Business Impact: Predictable wear limits improve maintenance scheduling and spare parts forecasting. Application: Heavy-use robotics and automated machines where repeatable mating is required. Feature: 7 contact layout (7 x #16 cavities) with gold-plated solder cups. Business Impact: Reliable, low-resistance connections support high-integrity signal and power paths. Application: Instrumentation and control interfaces demanding clean, repeatable connections.
