Eaton UTSX7JC102W2P Plastic Bayonet Connector - IP68
Part Number: UTSX7JC102W2P
Quick Summary
Eaton UTSX7JC102W2P is a plastic circular bayonet connector for rugged industrial interconnects. This hybrid receptacle design addresses the common pain point of moisture ingress and unreliable mating in harsh environments. With IP68/69K sealing, RoHS compliance, and a durable 250 mating cycle rating, it stands up to demanding factory and automation applications. In practice, engineers appreciate the compact 74.5 mm length and 27 mm width, plus the jam-nut receptacle option for a secure, space-saving installation. The Souriau UTSX family delivers a reliable, scalable solution that reduces downtime and total cost of ownership while supporting fast, tool-free field mating and straightforward maintenance.
Product Information
Extended Description
UTSX7JC102W2P Eaton: Jam nut receptacle, with cable gland backshell, for 4 male contacts, IP68/69K; UTSX7JC102W2P
Product Name

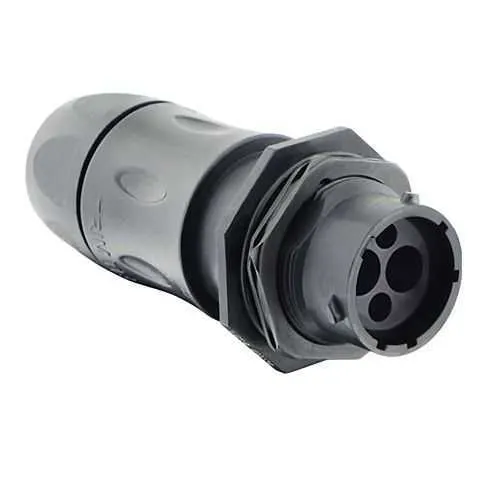

Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC102W2P
Product Length/Depth
74.5 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
17 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
2W2
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #20
2
Salt spray
500 hour
