Eaton UTSX7JC102W2S Plastic Bayonet Connector - IP68/69K
Part Number: UTSX7JC102W2S
Quick Summary
Eaton UTSX7JC102W2S is a plastic circular bayonet connector for harsh industrial environments. Designers and buyers often grapple with ensuring reliable sealing, easy mating, and long life in rugged conditions. The UTSX series delivers IP68/69K protection and RoHS compliance, backed by a durable 250-mating-cycle life, along with a compact 74.5 mm length and 27 mm square footprint. This combination supports streamlined installation, lower maintenance costs, and robust performance in machinery, packaging lines, and outdoor equipment. By leveraging the jam nut receptacle and straight backshell, you gain both reliable sealing and straightforward field servicing, while benefiting from compatibility across Souriau UTSX components and Crimp contact configurations for scalable automation projects.
Product Information
Extended Description

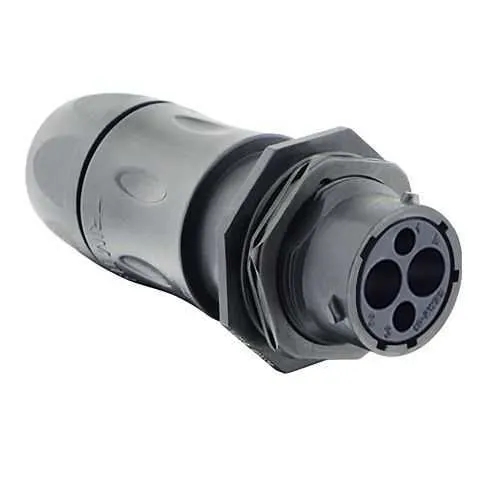

UTSX7JC102W2S Eaton: Jam nut receptacle, with cable gland backshell, for 4 female contacts, IP68/69K; UTSX7JC102W2S
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC102W2S
Product Length/Depth
74.5 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
18 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
2W2
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #20
2
Salt spray
500 hour
Feature → Business Impact → Application: The jam nut receptacle with a sealing gland backshell provides watertight sealing and straightforward mounting, reducing ingress risk and service downtime in outdoor or wet environments, ideal for automated conveyors and outdoor control panels. Feature → Business Impact → Application: Four crimp contacts in a 2W2 layout deliver reliable signal and power paths with compact routing, enabling tighter panel layouts and lower assembly costs in robotics and packaging machinery. Feature → Business Impact → Application: 1/3 bayonet coupling offers quick, tool-free mating and un-mating, improving on-site efficiency during maintenance and field upgrades across machine lines. Feature → Business Impact → Application: RoHS compliance and salt spray resistance (500 hours) enhance regulatory alignment and corrosion resistance for food processing, water treatment, and outdoor automation. Feature → Business Impact → Application: Operating temperature range of -40 °C to 105 °C supports use in extreme environments, reducing the need for climate-controlled enclosures in industrial facilities. Feature → Business Impact → Application: Straight backshell and delivered-with-connector option simplify installation, minimize accessory sourcing, and shorten project timelines for panel builders and machine builders.
Get a Quick Quote for a Eaton UTSX7JC102W2S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX7JC102W2S?
Enquire Now
FAQs
Plan for a jam nut receptacle with a sealing gland backshell and straight backshell. Use the 1/3 bayonet coupling and the 2W2 layout to align the four crimp contacts in a compact footprint. Ensure the panel aperture accommodates 74.5 mm length and 27 mm width, and assess nut torque for secure mounting.
It features IP68/69K sealing, RoHS compliance, and a salt spray rating of 500 hours, enabling reliable performance in wet or corrosive conditions. Its operating temperature range of -40 °C to 105 °C supports outdoor and high-temperature applications without additional enclosures.
Yes. It is part of the UTSX family and uses a 1/3 bayonet coupling with a 2W2 layout, designed to mate with compatible Souriau UTSX plugs or receptacles and standard crimp contacts for consistent electrical and mechanical fit.
The product is RoHS compliant and carries IP68/69K sealing, ensuring environmental and ingress protection standards are met for demanding industrial environments. It supports reliable operation in harsh conditions typical of automation and outdoor equipment.
Mating cycles are rated at 250, providing reliable reuse across service intervals. Salt spray endurance and RoHS compliance reduce corrosion risk, while the sealing gland backshell supports long-term ingress protection. Regular inspection of seals and backshell integrity is advised during routine maintenance.
