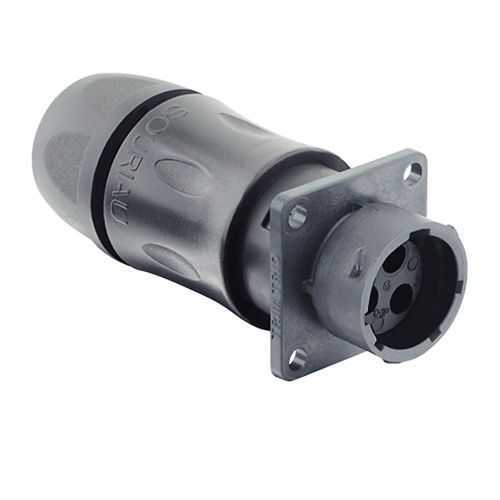

Eaton UTSX7JC103P Plastic circular bayonet connector - IP68
Part Number: UTSX7JC103P
Quick Summary
Eaton UTSX7JC103P is a plastic circular bayonet connector used in rugged industrial equipment to connect sensors and actuators reliably. Engineers often face moisture, dust, and field corrosion that cause intermittent connections and unplanned downtime; a sealed, easy-mating solution helps keep lines up and maintenance costs down. With IP68/69K sealing and RoHS compliance, this receptacle meets demanding electrical and environmental standards while delivering long-term reliability. The jam-nut receptacle design combined with a 3-contact, crimp configuration fits tight control panels and harsh outdoor installations, offering predictable performance. Its compact 74.5 mm length and 18 g weight enable simpler wiring layouts in automation cabinets and on machines.
Product Information
Extended Description
UTSX7JC103P Eaton: Jam nut receptacle, with cable gland backshell, for 3 male contacts, IP68/69K; UTSX7JC103P
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC103P
Product Length/Depth
74.5 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
18 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
3
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
3
Number of cavity #16
3
Salt spray
500 hour
Jam Nut Receptacle with Cable Gland Backing, 3 male crimp contacts, and IP68/69K sealing provide a robust, sealed connection that reduces moisture ingress and maintenance costs while enabling reliable panel mounting in harsh environments. The 1/3 Bayonet coupling delivers quick, secure mating, minimizing downtime during assembly and field service. With a plastic shell (Shell size 10) and a compact 74.5 mm length, the connector fits tight spaces without sacrificing durability, supporting operating temperatures from -40 °C to 105 °C for outdoor and industrial use. Delivered as a complete jam nut receptacle, it offers straightforward integration with straight backshell and 3 cavities (#16) for tidy, rated terminations. Coupled with RoHS compliance and 500-hour salt spray resistance, it stands up to corrosive environments common in machinery and packaging lines.
Get a Quick Quote for a Eaton UTSX7JC103P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX7JC103P?
Enquire Now
FAQs
To install, place the Jam Nut Receptacle into the panel cutout sized for Shell size 10, align orientation with the N designation, then tighten the jam nut to seal against the backshell gland. Use properly crimped #16 cavities for each of the three pins, route cables through the backshell, and verify the 1/3 bayonet coupling seals securely when mated. This process minimizes ingress paths and ensures consistent electrical contact.
Yes. The connector is rated IP68/69K for robust ingress protection and RoHS-compliant, with salt spray resistance for up to 500 hours. It operates from -40 °C to 105 °C, making it appropriate for outdoor installations, exposed machinery, and use in demanding automation settings where moisture, dust, and corrosion are concerns.
The UTSX7JC103P provides three crimp-type male contacts in a 3-cavity layout. It uses a jam nut receptacle with a straight backshell, supports 250 mating cycles, and has a shell size 10. The contacts are designed for reliable crimp termination and withstand standard industrial wiring demands in automation panels.
This model is a jam nut receptacle with a cable gland backshell and 3 male crimp contacts, optimized for tight spaces and rugged environments. It features a straight backshell, 1/3 bayonet coupling for quick mating, RoHS compliance, and IP68/69K sealing, delivering a compact, reliable solution for control panels and outdoor equipment.
The combination of IP68/69K sealing, RoHS compliance, and 500-hour salt spray resistance reduces field maintenance and failure rates due to moisture or corrosion. The 250 mating cycles and lightweight design shorten installation time and lower replacement costs, delivering higher uptime and lower total cost of ownership in automation and machinery applications.
