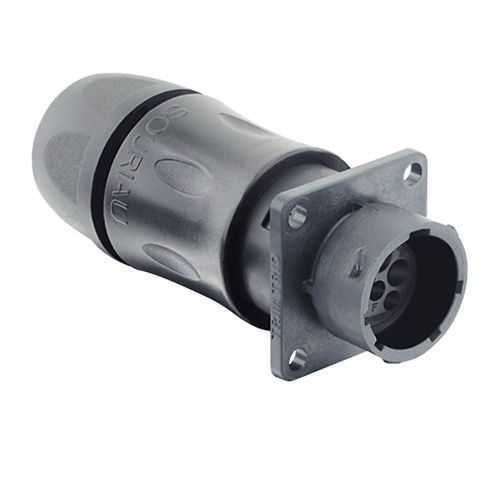

Eaton UTSX7JC103W3P Plastic Bayonet Connector - IP68
Part Number: UTSX7JC103W3P
Quick Summary
Eaton UTSX7JC103W3P is a plastic circular bayonet connector for rugged, IP68-rated industrial connections. Field technicians often face moisture ingress, dust, and seal failures that halt production; this design helps mitigate those challenges. The UTSX series emphasizes IP68/69K sealing and RoHS compliance, providing durable performance in harsh environments. With a jam nut receptacle, straight backshell, and 6 male crimp contacts, it supports fast, reliable assemblies while aligning with common Souriau UTSX ecosystem. In automation and mobile machinery, these qualities translate to reduced maintenance cycles and steadier uptime, complementing your cost-containment strategies without sacrificing reliability.
Product Information
Extended Description
UTSX7JC103W3P Eaton: Jam nut receptacle, with cable gland backshell, for 6 male contacts, IP68/69K; UTSX7JC103W3P
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC103W3P
Product Length/Depth
74.5 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
17 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
3W3
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
6
Number of cavity #12
3
Number of cavity #16
3
Number of cavity #20
3
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69K sealing delivers dependable protection against water, dust, and immersion, reducing field service and downtime in outdoor and washdown environments. This directly lowers maintenance costs and extends equipment life, especially on conveyors and robotics in harsh factories. Feature → Business Impact → Application: 6-pin male crimp contacts in a 3W3 layout supports compact, high-density wiring, simplifying harness design and enabling smaller enclosures in automated lines. This improves installation speed and reduces wiring errors in robotic grippers and control panels. Feature → Business Impact → Application: Jam nut receptacle with a straight backshell and sealing gland provides robust sealing and strain relief, speeding panel mounting and cable entry while improving reliability in machine tools and mobile equipment. Feature → Business Impact → Application: Operating temperature range from -40 °C to 105 °C and 250 mating cycles offer long service life and resilience to temperature swings and vibration, key for outdoor multi-axis systems and packaging lines. Feature → Business Impact → Application: RoHS compliance and plastic shell keep weight down and simplify regulatory alignment, supporting cost-effective scaling across multiple global sites and reducing compliance risk for industrial automation projects.
