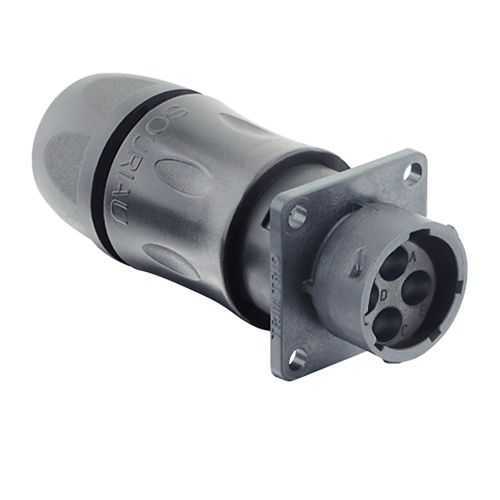

Eaton UTSX7JC104PW Plastic Circular Bayonet Connector - IP68
Part Number: UTSX7JC104PW
Quick Summary
The Eaton Souriau UTSX7JC104PW plastic circular bayonet connector provides rugged, IP-rated connections for 4-contact industrial sensors. A common challenge is protecting against moisture, dust, and corrosion while minimizing downtime during field service. It offers IP68/69K sealing, RoHS compliance, and 250 mating cycles to ensure long life in harsh environments. This combination supports reliable automation, reduces replacement costs, and simplifies sourcing for factory and machine builders. For procurement teams, the compact 74.5 mm length and 27 mm width enable compact harnessing while maintaining signal integrity. The jam nut receptacle with sealing gland backshell supports easy field installation and durable sealing across application envelopes.
Product Information
Extended Description
UTSX7JC104PW Eaton: Jam nut receptacle, with cable gland backshell, for 4 male contacts, IP68/69K, keying W; UTSX7JC104PW
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC104PW
Product Length/Depth
74.5 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
17 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
4
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Salt spray
500 hour
Feature → Business Impact → Application: 4-contact jam nut receptacle with 1/3 bayonet coupling delivers secure mating and fast connect/disconnect, reducing downtime in automated lines and robotics harnessing. Application: factory automation and assembly lines. Feature → Business Impact → Application: sealing gland backshell plus IP68/69K rating provides water and dust ingress protection, lowering field repair costs in washdown environments. Application: outdoor equipment and hygienic zones. Feature → Business Impact → Application: plastic shell (Shell size 10) with 74.5 mm length and 27 mm width keeps weight low at 17 g, improving routing efficiency in compact control panels. Application: small enclosures and space-constrained installations. Feature → Business Impact → Application: operating range -40 °C to 105 °C and 500 hours salt spray plus RoHS ensure regulatory compliance and long-term reliability. Application: rugged industry and automotive manufacturing. Feature → Business Impact → Application: 250 mating cycles with four cavities supports durable, repeatable connections in high-cycling equipment like conveyors. Application: continuous production lines. Feature → Business Impact → Application: orientation W with straight backshell simplifies mounting and alignment, speeding installation and reducing installer error. Application: panel-mmount or harness assemblies.
Get a Quick Quote for a Eaton UTSX7JC104PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX7JC104PW?
Enquire Now
FAQs
To install the UTSX7JC104PW with its jam nut receptacle, thread the backshell through the mating panel, tighten the jam nut to seal, and terminate the 4 crimp contacts in the cavity block. Use the straight backshell and W orientation for aligned mating, and confirm 74.5 mm length fits your enclosure space.
IP68/69K sealing protects against water ingress, fine dust, and high-pressure washdowns, making the UTSX7JC104PW suitable for outdoor, wet, or hygienic sectors. The sealing gland backshell further enhances environmental integrity by maintaining a tight, gasketed interface around the 4-pin cavity, ensuring performance remains stable between -40 °C and 105 °C. That reliability reduces field service calls.
Rated for 250 mating cycles, the UTSX7JC104PW balances quick connect/disconnect with durable contacts. In practice, this means fewer connector failures in cyclic automation tasks and longer service intervals, especially in robotics or conveyors where plug-in connections are routine. Plan for regular re-termination checks during scheduled maintenance. Documented cycles help predict replacement timing.
Yes. The connector supports -40 °C to 105 °C, enabling use across cold starts, hot processes, or outdoor installations. The RoHS-compliant plastic shell offers corrosion resistance, while the 74.5 mm length and 10 shell size help fit limited spaces. Always verify mating alignment and gasket integrity after repeated cycles. Consider reliable sealing checks during preventive maintenance.
Yes, the UTSX7JC104PW is part of the Souriau UTSX family and uses standard 4-contact crimp terminals within a jam nut receptacle. It maintains 4 cavities and 1/3 bayonet coupling, compatible with other UTSX accessories for modular wiring harnesses. Check mating interface and cavity count to ensure a proper fit. Consult datasheets for exact crimp sizes and mating compatibility.
