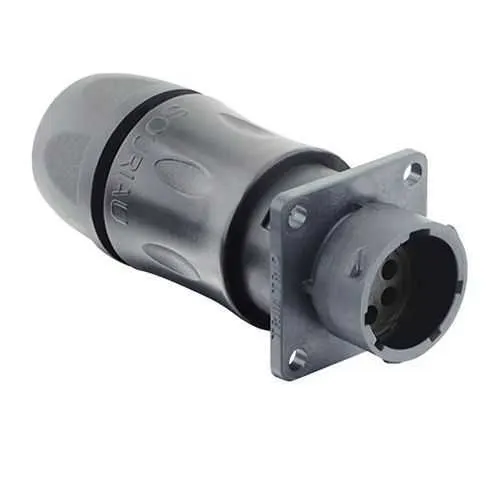

Eaton UTSX7JC106P Plastic Circular Bayonet Connector - IP68
Part Number: UTSX7JC106P
Quick Summary
The Eaton Souriau UTSX7JC106P is a plastic circular bayonet connector for rugged industrial wiring. It helps prevent moisture intrusion and mating failures in harsh, dirty environments. With IP68 sealing, RoHS compliance, and up to 250 mating cycles, it meets reliability and regulatory needs. Designed as a jam nut receptacle with a sealing gland backshell for six crimp contacts, it offers secure mounting and robust protection in confined areas. The solution integrates seamlessly with the UTSX family, delivering lightweight, compact connectivity for sensors, motors, and control panels while reducing maintenance costs and downtime. Users value predictable performance, easy field service, and long service life in demanding automation environments.
Product Information
Extended Description
UTSX7JC106P Eaton: Jam nut receptacle, with cable gland backshell, for 6 male contacts, IP68/69K; UTSX7JC106P
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC106P
Product Length/Depth
74.5 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
17 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
6
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
6
Number of cavity #20
6
Salt spray
500 hour
Six-position jam nut receptacle with a sealing gland backshell delivers a robust seal and secure mounting, reducing ingress risk. This design simplifies panel mounting in tight spaces, especially on conveyors, packaging lines, and rugged automation rigs where vibration is constant. It enables clean, organized six-pin crimp connections in a single compact footprint, with a straight backshell orientation that minimizes cabling angles. The 74.5 mm length and 27 x 27 mm envelope fit standard panel cutouts without excessive protrusion, helping maintain enclosure integrity. High ingress protection is achieved through IP68 sealing, safeguarding sensitive electronics from water, dust, and washdown. A 500-hour salt spray rating indicates corrosion resistance in harsh environments, contributing to longer service life and lower maintenance costs. In practice, this reduces field failure rates and service calls in outdoor or wet locations. Fast mating is supported by 1/3 bayonet coupling, which shortens installation time and minimizes worker fatigue. In manufacturing cells or material handling lines, quick disconnects mean faster line changes and easier maintenance without special tooling. Six crimp contacts in a plastic shell offer lightweight, cost-effective connectivity, while maintaining electrical performance for signals and limited power. This suits sensor networks, controllers, and small motor drives, enabling streamlined harnessing and reduced cabling mass. Operating temperature range from -40°C to 105°C ensures reliable operation across cold rooms and high-heat environments. Combined with RoHS compliance, it supports regulatory requirements and sustainability goals in industrial automation projects. Compatibility and installation advantages include straight backshell and jam nut mounting for straightforward panel integration. The UTSX7JC106P is designed to pair with other UTSX components for scalable automation systems, minimizing obsolescence risk and extending the value of existing inventories.
