Eaton UTSX7JC106S circular bayonet connector - IP68/IP69K
Part Number: UTSX7JC106S
Quick Summary
Eaton UTSX7JC106S is a plastic circular bayonet connector for rugged industrial wiring. Engineers often battle moisture ingress, dust, and mis-mating during field installs; this jam-nut receptacle helps prevent those issues. Its IP68/69K sealing and RoHS compliance meet harsh-environment demands, while the Souriau UTSX series lineage ensures reliable compatibility. For OEMs and maintenance teams, the compact 6-contact layout, straight backshell, and 1/3 bayonet coupling translate into faster field assembly and lower downtime. End-to-end benefits include robust sealing, long service life (up to 250 mating cycles), and straightforward panel mounting with the jam nut receptacle.
Product Information
Extended Description

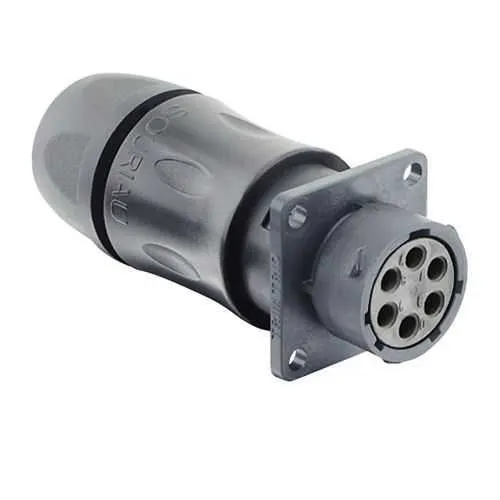

UTSX7JC106S Eaton: Jam nut receptacle, with cable gland backshell, for 6 female contacts, IP68/69K; UTSX7JC106S
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC106S
Product Length/Depth
74.5 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
17 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
6
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
6
Number of cavity #20
6
Salt spray
500 hour
Feature: IP68/69K sealing with sealing gland backshell. Business Impact: Delivers superior ingress protection, reducing field failures from wash-downs and dusty environments while extending service life and lowering warranty costs. Application: food processing equipment, outdoor automation stations, and harsh-duty conveyors. Feature: 6-position layout with 6 female crimp contacts. Business Impact: supports clean, reliable power and signal distribution within a compact footprint, improving harness quality and reducing wiring errors. Application: robotics, packaging lines, and machine tools. Feature: Jam Nut Receptacle with straight backshell. Business Impact: simplifies panel mounting, provides robust strain relief, and speeds maintenance with a secure, vibration-resistant connection. Application: OEM panels and control enclosures. Feature: 1/3 Bayonet coupling. Business Impact: enables quick, tool-free mating under field conditions, minimizing downtime and service calls. Application: routine field assembly on automated lines. Feature: RoHS compliance and wide operating range (-40 °C to 105 °C). Business Impact: ensures regulatory compliance and reliable operation across cold and hot environments, reducing part substitutions. Application: cold storage, high-temperature manufacturing, and outdoor installations. Feature: 250 mating cycles and 6 cavity layout. Business Impact: long connector life with predictable degradation curves, lowering replacement costs and maintenance intervals. Application: high-cycle production environments. Feature: Delivered with connector (connector accessory option) and backshell sealing gland. Business Impact: lowers installation steps and ensures consistent sealing from the start. Application: OEM integration and field upgrades.
