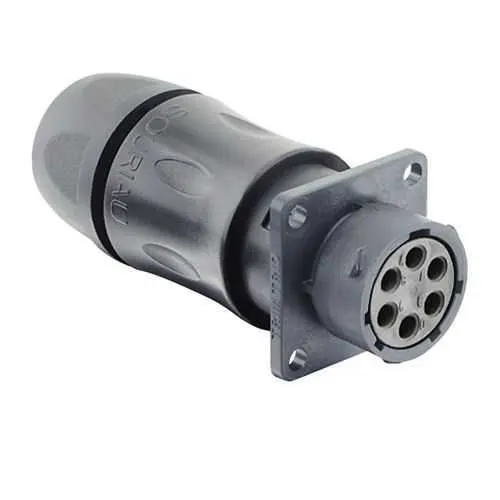

Eaton UTSX7JC106SW Circular Bayonet Receptacle - IP68/69K
Part Number: UTSX7JC106SW
Quick Summary
Eaton UTSX7JC106SW is a plastic circular bayonet connector for rugged, IP-rated field connections in industrial machinery and automation panels. For engineers under tight maintenance windows, slow field changes and sealing failures erode uptime and increase lifecycle costs. IP68/69K sealing and RoHS compliance, along with robust 250 mating cycles, deliver durable performance in washdown and harsh environments. This sealed, lightweight connector supports field wiring efficiency and easy integration within Souriau UTSX series ecosystems, offering reliable, long-term value for automation panels and control cabinets.
Product Information
Extended Description
UTSX7JC106SW Eaton: Jam nut receptacle, with cable gland backshell, for 6 female contacts, IP68/69K, keying W; UTSX7JC106SW
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC106SW
Product Length/Depth
74.5 mm
Product Height
27 mm
Product Width
27 mm
Product Weight
17 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
6
Shell material
Plastic
Shell size
10
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
6
Number of cavity #20
6
Salt spray
500 hour
Feature is IP68/69K sealing and a straight backshell with sealing gland, providing ingress protection and moisture resistance. Business Impact is reduced maintenance downtime and lower risk of water ingress in harsh environments, enabling longer equipment life. Application is use in automated machinery, washdown areas, and outdoor control panels where reliable sealing is essential. Feature is 6-position receptacle with 6 crimp contacts and jam nut receptacle design, delivering straightforward wiring and secure mating. Business Impact is faster installation, improved cable management, and consistent electrical performance in rugged settings. Application is machine-to-panel wiring in manufacturing lines that require quick connect/disconnect capability. Feature is 1/3 bayonet coupling and easy mate/unmate cycles, minimizing downtime during field service. Business Impact is reduced service time and improved maintenance efficiency. Application is modular automation architectures and sensor/actuator networks. Feature is RoHS-compliant plastic shell and 74.5 mm length with 27 mm width/height, balancing weight and space. Business Impact is lighter assemblies and easier integration into compact control cabinets. Application is cost-conscious projects where material and weight savings matter, without compromising sealing or durability.
Get a Quick Quote for a Eaton UTSX7JC106SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX7JC106SW?
Enquire Now
FAQs
The UTSX7JC106SW is designed as a 6-position jam-nut receptacle for Souriau UTSX series mating plugs. It uses crimp contact terminations and a backshell with a sealing gland, providing strain relief and ingress protection. Wire the six crimp contacts per your harness design, then mate with the corresponding UTSX plug to ensure a secure, IP67/68 rated connection suitable for automation panels and sensors.
Key performance specs include IP68/69K sealing, RoHS compliance, and a operating temperature range from -40 °C to 105 °C. The connector supports up to 250 mating cycles, which translates to dependable performance across frequent connect/disconnect cycles in washdown or outdoor installations, while the sealing gland backshell protects against moisture and contaminants.
Yes. The six-contact receptacle with a jam nut backshell is designed for reliable field wiring in sensor and actuator networks within automated systems. Its IP68/69K rating and RoHS compliance ensure protection against dust and immersion, while its 1/3 bayonet coupling enables quick, tool-free mating, reducing installation time in dense control cabinets.
This connector is RoHS compliant, aligning with environmental and manufacturing standards. It offers IP68/69K protection for rigorous sealing in washdowns, and its design supports use in industrial automation environments requiring durable, sealed connections. While CE marking is not specified in the data, the combination of RoHS and IP-rated sealing covers the primary regulatory considerations for equipment integration.
Choosing the UTSX7JC106SW can reduce downtime through rapid mating via 1/3 bayonet coupling, robust sealing to prevent ingress, and a long service life evidenced by 250 mating cycles. The sealed gland backshell simplifies installation and cable management, improving maintenance efficiency and lowering total cost of ownership in automation panels and field wiring projects.
