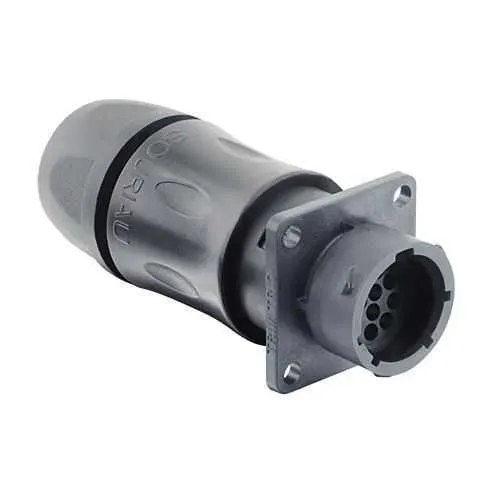

Eaton UTSX7JC1210PW Plastic Circular Bayonet Connector - IP68/69K
Part Number: UTSX7JC1210PW
Quick Summary
Eaton Souriau UTSX7JC1210PW is a plastic circular bayonet connector designed for sealed electrical connections in harsh industrial environments. When space is tight or washdown conditions threaten moisture ingress, reliable, easy-to-mate features reduce downtime and rework. This series delivers IP68/69K sealing and RoHS-compliant materials, with a robust straight backshell, 10 crimp contacts, and up to 250 mating cycles, ensuring long life in demanding applications. As a lightweight, field-friendly solution, it improves installation efficiency and inventory management for panel builders, machine builders, and automation integrators.
Product Information
Extended Description
UTSX7JC1210PW Eaton: Jam nut receptacle, with cable gland backshell, for 10 male contacts, IP68/69K, keying W; UTSX7JC1210PW
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC1210PW
Product Length/Depth
77.5 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
28 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
10
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
Feature: Sealing gland backshell and IP68/69K protection. Business impact: Reduces moisture ingress and field failures in washdown environments, leading to fewer service calls and lower maintenance costs. Application: Ideal for sensors and actuators in food processing, water treatment, and outdoor equipment where sealing reliability is critical. Feature: 10-position layout with crimp contacts and 1/3 bayonet coupling. Business impact: Enables compact harness routing and rapid mating, cutting assembly and service time in control panels. Application: Suitable for multi-sensor bundles and compact actuator assemblies in automated lines. Feature: Lightweight plastic shell with shell size 12 and dimensions 77.5 mm length by 31.8 mm width/height. Business impact: Reduces overall system weight and installation effort without compromising toughness, improving energy efficiency and ease of handling. Application: Used in mobile industrial equipment and tight-panel installations. Feature: RoHS compliance and salt spray resistance (500 hours). Business impact: Supports regulatory compliance and long-term corrosion resistance, lowering replacement frequency and warranty costs. Application: Harsh environments, food-grade and washdown areas where durability matters. Feature: Jam Nut Receptacle with straight backshell and sealing gland. Business impact: Simplifies mounting and field repair, enabling quick retrofits and reliable sealing around cables. Application: Control panels, motors, and equipment in automation lines requiring robust, watertight joints. Industry insight: In modern automation, a 10-contact UTSX receptacle like this is a common building block for sensor networks and actuator harnesses, balancing weight, seal integrity, and ease of installation while meeting regulatory expectations.
Get a Quick Quote for a Eaton UTSX7JC1210PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX7JC1210PW?
Enquire Now
FAQs
The UTSX7JC1210PW is a jam nut receptacle designed to mate with the UTSX plug family, featuring a straight backshell and 1/3 bayonet coupling. It provides a 10-contact layout with crimp contacts, ensuring reliable, seal-protected connections in standard Souriau UTSX installations. When paired with a matching plug, it delivers consistent alignment and sealing performance for modular automation systems.
Key specs include IP68/69K ingress protection, RoHS-compliant materials, 10 contacts in a 10-position layout, 77.5 mm length, 31.8 mm width and height, 28 g weight, operating temperatures from -40 °C to 105 °C, 250 mating cycles, and a straight backshell with a sealing gland. It is designed for reliable, rugged operation in harsh industrial environments.
Yes. The UTSX7JC1210PW provides IP68/69K sealing and a sealing gland backshell, making it well-suited for washdown and moisture-rich settings. It is RoHS compliant and tested for corrosion resistance (500-hour salt spray), delivering durability and regulatory alignment in facilities requiring stringent cleanliness and reliability.
This connector is IP68/69K rated and RoHS compliant, offering ingress protection and environmental compliance essential for harsh industrial applications. While CE isn’t specified in the provided data, the RoHS and IP rating address core regulatory and safety considerations for automated equipment.
The lightweight plastic shell, jam nut receptacle design, and sealed backshell simplify installation and field replacement, reducing downtime. With 250 mating cycles and robust sealing, the connector minimizes maintenance frequency and warranty costs, while its compatibility with crimp contacts streamlines stock management for automation projects.
