Eaton UTSX7JC1210PX Plastic Bayonet Connector - IP68/69K
Part Number: UTSX7JC1210PX
Quick Summary
Eaton UTSX7JC1210PX Plastic Bayonet Connector is a rugged 10-position interface designed for harsh industrial environments such as automated lines and outdoor equipment. Engineers often battle ingress protection and moisture during extended duty cycles, which leads to downtime and reliability challenges. This design supports IP68/69K sealing and RoHS compliance, backed by a robust 250 mating cycles and a sealing gland backshell to simplify field installation. By delivering a compact, lightweight, and easy-to-mount solution, it helps system integrators reduce wiring errors, shorten assembly time, and lower maintenance costs, all while maintaining safety and regulatory compliance.
Product Information
Extended Description

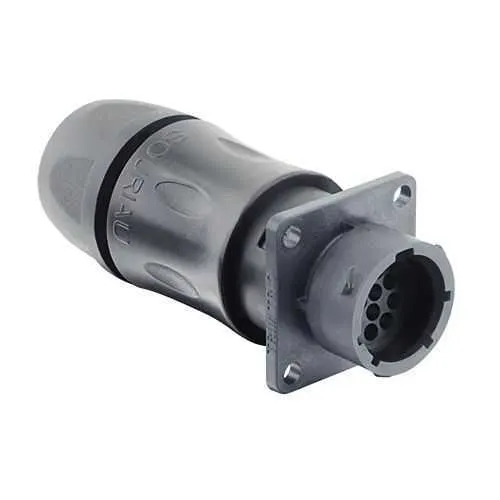

UTSX7JC1210PX Eaton: Jam nut receptacle, with cable gland backshell, for 10 male contacts, IP68/69K, keying X; UTSX7JC1210PX
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC1210PX
Product Length/Depth
77.5 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
28 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
10
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
Feature: 10-contact layout and 1/3 bayonet coupling provide quick, secure mating that reduces downtime and wear. Benefit: faster assembly, longer connector life, and fewer field failures in automated lines. Application: machine builders, robotics, and packaging equipment. Feature: Sealing gland backshell with straight backshell angle achieves IP68/69K ingress protection for use in washdown and harsh environments. Benefit: lower maintenance costs and higher uptime in outdoor enclosures. Application: outdoor machinery, material handling, and outdoor industrial controls. Feature: Lightweight plastic shell (28 g) and compact footprint (77.5 mm length, 31.8 mm diameter). Benefit: easier harnessing, space efficiency, and reduced cable weight. Application: compact control panels and portable equipment. Feature: RoHS compliance and salt spray testing (500 hours) support regulatory and corrosion resistance. Benefit: long service life and lower replacement costs. Application: general industrial equipment subject to regulatory standards. Feature: Delivered with connector option and 10-position layout with X orientation. Benefit: simplified integration and fewer onsite wiring errors. Application: system integration in automated lines and control cabinets.
Get a Quick Quote for a Eaton UTSX7JC1210PX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX7JC1210PX?
Enquire Now
FAQs
The connector carries an IP68/69K ingress protection rating and RoHS compliance, with a sealing gland backshell and straight backshell angle. Its 10 contacts and 250 mating cycles support durable, reliable performance in washdown zones and outdoor enclosures while keeping installation straightforward.
The jam nut receptacle combined with a cable gland backshell provides a secure, watertight seal at the panel. This reduces leakage points, simplifies gasketed mounting, and enables faster field assembly in tight spaces without compromising protection.
Yes. It uses a 1/3 bayonet coupling with a 10-contact layout and X-key orientation, designed as a receptacle for Souriau UTSX series assemblies. Delivered as part of the connector family, it integrates with compatible backshells and crimp contacts for consistent installation across the line.
With up to 250 mating cycles and a salt spray tolerance of 500 hours, the UTSX7JC1210PX is built for long service life in challenging conditions. RoHS compliance and a plastic shell contribute to corrosion resistance, lower lifecycle costs, and easier replacement in maintenance routines.
Ideal for automated manufacturing, robotics, packaging equipment, and outdoor machinery, where reliable sealing, lightweight cabling, and compact form factors are critical for panel-mounted harnesses and rapid field installations.
