Eaton UTSX7JC1210PY Plastic Bayonet Receptacle - IP68
Part Number: UTSX7JC1210PY
Quick Summary
Eaton UTSX7JC1210PY is a plastic circular bayonet connector used for sealed 10-contact connections in industrial machinery. Users often struggle with waterproofing, cable strain, and downtime when selecting rugged connectors for washdown or outdoor environments. This connector delivers IP68/69K sealing and RoHS compliance, featuring a jam nut receptacle with a sealing gland for reliable performance. It supports a compact, lightweight profile ideal for space-constrained installations, while enabling quick field maintenance and consistent mating across service cycles. In short, it combines robust protection with ease of installation to reduce downtime and total cost of ownership for automation and electrical system designs.
Product Information
Extended Description

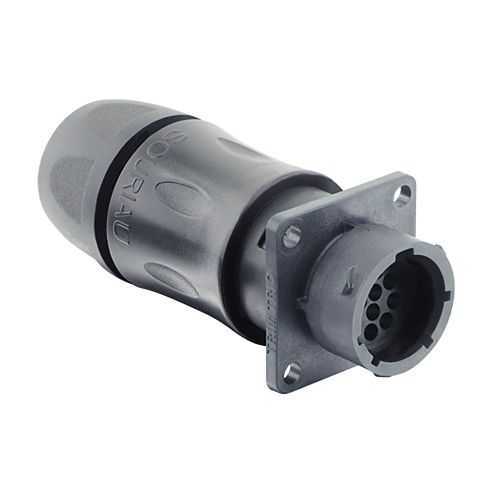

UTSX7JC1210PY Eaton: Jam nut receptacle, with cable gland backshell, for 10 male contacts, IP68/69K, keying Y; UTSX7JC1210PY
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC1210PY
Product Length/Depth
77.5 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
28 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
10
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69K sealing ensures protection against dust, water ingress, and high-pressure washdowns, reducing field failures and warranty costs while increasing equipment uptime in outdoor equipment and food-and-beverage automation. This translates to longer service intervals and lower maintenance labor costs in harsh environments. Application: robotics, packaging lines, and outdoor machinery benefit from dependable sealing and long-lasting performance.Feature → Business Impact → Application: Jam Nut Receptacle with Sealing Gland provides secure backshell attachment and improved strain relief, enhancing cable integrity and reducing connector-related damage during vibration or impact in mobile equipment and conveyor systems. Application: mobile machinery and material handling where rugged coupling is required.Feature → Business Impact → Application: 10-position, crimp-contact layout with 1/3 Bayonet coupling offers fast, repeatable mating and simple on-site field servicing, cutting down downtime during maintenance and upgrades. Application: control panels and motor drive connections where compact, reliable, high-contact-density connectors are preferred.Feature → Business Impact → Application: Plastic shell and shell size 12 deliver a lightweight, corrosion-resistant solution with 250 mating cycles, lowering life-cycle costs and improving overall system reliability in harsh industrial environments. Application: outdoor equipment, remote sensor networks, and marine-industrial installations.Feature → Business Impact → Application: RoHS compliance and salt-spray resilience (500 hours) provide regulatory alignment and extended corrosion resistance, supporting long-term compliance and reduced replacement cycles. Application: food-grade and regulated environments requiring durable, compliant connectors.Feature → Business Impact → Application: Operating temperature range from -40 °C to 105 °C enables use across cold starts and high-temperature processes, stabilizing performance in automotive, robotics, and process automation. Application: harsh-temperature environments where consistent conductivity and sealing are essential.
Get a Quick Quote for a Eaton UTSX7JC1210PY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX7JC1210PY?
Enquire Now
FAQs
Yes. The UTSX7JC1210PY is a Jam Nut Receptacle with a Sealing Gland backshell and uses crimp contacts designed for this 10-position layout. Its 1/3 Bayonet coupling enables quick, secure mating, while the straight backshell angle simplifies cable routing. Ensure you use the correct crimp tools and follow mating torque guidelines to maximize reliability in rugged environments.
Key specs include IP68/69K sealing for washdown and submersion resistance, RoHS compliance, 250 mating cycles, and an operating temperature range from -40 °C to 105 °C. The 77.5 mm length and 31.8 mm width/height with a 10-contact layout support compact installations in confined panels and equipment racks.
Yes. The plastic shell with sealing gland backshell and straight orientation is designed for rugged outdoor and washdown environments. Its 10-contact, 1/3 bayonet coupling enables reliable quick-mate connections in robotic arms, conveyors, and outdoor automation modules while maintaining electrical integrity under vibration and temperature extremes.
The UTSX7JC1210PY is RoHS compliant and features IP68/69K sealing, ensuring protection against dust and water ingress in challenging environments. While CE certification specifics are not listed in the provided data, the RoHS and IP ratings align with common European and global safety and environmental standards for industrial connectors.
The combination of 250 mating cycles, robust sealing, and a sealed backshell reduces field failures and downtime, lowering maintenance costs and extending service intervals. Its lightweight plastic shell minimizes wear on mating interfaces, while the straight backshell and guided mating simplify technician time on installation and replacement, delivering faster ROI in automation projects.
