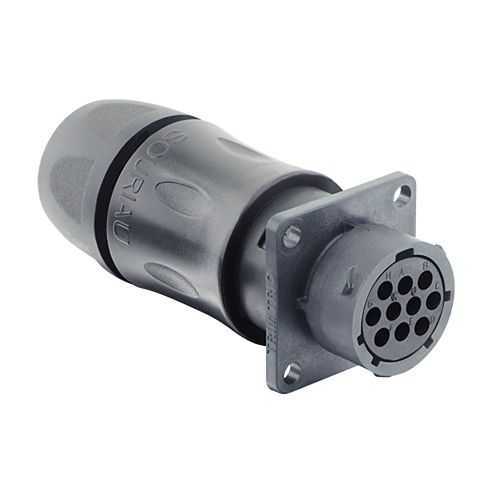

Eaton UTSX7JC1210S plastic bayonet connector - IP68/69K
Part Number: UTSX7JC1210S
Quick Summary
Eaton UTSX7JC1210S is a plastic circular bayonet connector for rugged, field electrical connections. Engineers frequently battle moisture ingress, vibration, and wear from frequent mating in harsh environments, and this design targets those challenges with robust sealing and a long service life. IP68/69K sealing and RoHS compliance are key certifications that support reliable performance and simpler supplier qualification in demanding industries. The jam-nut receptacle with a sealing gland backshell and straight orientation enables fast, clean panel mounting with dependable protection. This combination is well-suited for outdoor cranes, packaging lines, and metalworking machinery where reliability matters most. In practice, procurement also benefits from a compact 28 g weight and RoHS-compliant materials, reducing total cost of ownership.
Product Information
Extended Description
UTSX7JC1210S Eaton: Jam nut receptacle, with cable gland backshell, for 10 female contacts, IP68/69K; UTSX7JC1210S
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC1210S
Product Length/Depth
77.5 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
28 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
10
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
