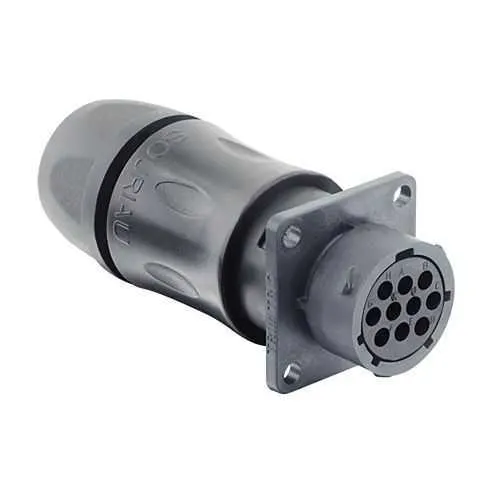

Eaton UTSX7JC1210SW Plastic Bayonet Connector - IP68
Part Number: UTSX7JC1210SW
Quick Summary
The Eaton Souriau UTSX7JC1210SW is a plastic circular bayonet connector designed for rugged, high-reliability wiring in harsh industrial environments. In challenging installations, moisture ingress and sealing failures can drive downtime and maintenance costs, especially in washdown or outdoor applications. With IP68/69K sealing and RoHS compliance, plus a jam nut receptacle design and 10 contact positions, this solution supports reliability and long service life. Its straight backshell and W-oriented coupling simplify installation in tight panels, while the 250 mating cycles and lightweight plastic shell help reduce the total cost of ownership. For designers and technicians, it provides a dependable, easy-to-service connectivity option that scales across automation equipment and control panels.
Product Information
Extended Description
UTSX7JC1210SW Eaton: Jam nut receptacle, with cable gland backshell, for 10 female contacts, IP68/69K, keying W; UTSX7JC1210SW
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC1210SW
Product Length/Depth
77.5 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
28 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
10
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
Feature: IP68/69K sealing and sealing gland backshell protect against water, dust and washdown spray. Business Impact: Reduces field failures and maintenance costs, extending service intervals in harsh environments. Application: Food & beverage packaging lines and outdoor industrial equipment benefit from reliable protection during washdowns. Feature: 1/3 bayonet coupling with 10-position layout enables quick, tool-assisted mating. Business Impact: Faster panel installation and fewer misalignments, cutting commissioning time. Application: Control panels and machine tooling where rapid setup is critical. Feature: Jam Nut Receptacle with backshell option and RoHS compliance delivers a compact, lightweight solution. Business Impact: Lower total installed weight and easier compliance management, reducing total cost of ownership. Application: Aerospace, robotics, and automotive assembly lines demanding lightweight connectors. Feature: Crimp contact type and 10 contacts support scalable signal or small-power applications. Business Impact: Simplifies wiring harness design and inventory, enabling consistent performance across variants. Application: Industrial automation sensors, actuators, and field cables. Feature: Operating temperature range from -40 °C to 105 °C and 250 mating cycles ensure durable performance in tough environments. Business Impact: Predictable longevity and reduced replacement cycles, improving ROI. Application: Conveyors, packaging, and outdoor machinery where temperature shifts occur.
Get a Quick Quote for a Eaton UTSX7JC1210SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX7JC1210SW?
Enquire Now
FAQs
The unit is a jam nut receptacle designed for a straight backshell with a W orientation and 1/3 bayonet coupling. It accepts 10 crimp female contacts and ships with a sealing gland backshell. For compatibility, ensure your panel cutout matches the shell size and you have a compatible crimp tool and backshell hardware. This setup minimizes misalignment and simplifies field termination while preserving IP68/69K protection.
The connector supports up to 250 mating cycles, indicating solid endurance for routine reconnects in service. Operating temperature ranges from -40 °C to 105 °C, making it suitable for environments with wide thermal swings. Its IP68/69K sealing provides robust ingress protection during washdowns and outdoor exposure, ensuring continued performance under demanding conditions.
Yes. The UTSX7JC1210SW features IP68/69K sealing and a sealing gland backshell, designed to withstand washdown and rugged industrial environments. With RoHS compliance and a jam nut receptacle design, it’s well-suited for packaging lines, conveyors, and outdoor equipment where moisture and dust are ongoing concerns.
The product complies with RoHS for restricted substances and provides high-level ingress protection through IP68/69K sealing. While the data does not list SIL or CE certifications, the RoHS and IP ratings ensure compliance with many industrial automation and machinery requirements common in global manufacturing facilities.
The combination of a 10-position crimp contact arrangement, durable plastic shell, and sealed backshell reduces maintenance needs by limiting ingress and failure points. With up to 250 mating cycles and a lightweight design, you can expect lower replacement costs, quicker field servicing, and improved uptime—particularly valuable in continuous production environments and high-mix manufacturing lines.
