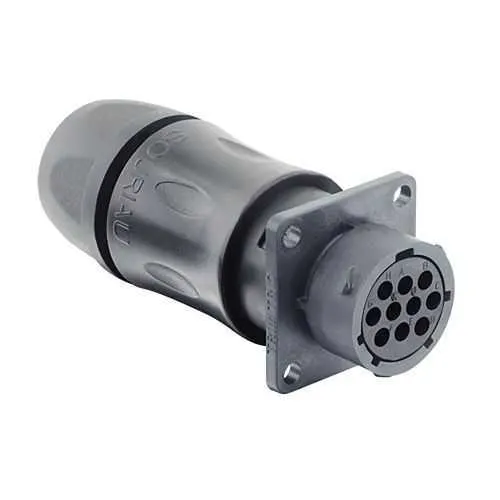

Eaton UTSX7JC1210SX Plastic Bayonet Connector - IP68/69K
Part Number: UTSX7JC1210SX
Quick Summary
Eaton UTSX7JC1210SX is a plastic circular bayonet connector designed for rugged, sealed electrical connections in industrial equipment. Engineers often struggle with moisture ingress and gland sealing that compromise uptime in harsh environments. With IP68/69K sealing and RoHS compliance, this connector meets demanding durability and regulatory requirements while enabling safer, longer-lasting installations. Designed for seamless integration with jam nut receptacles and a 10-position layout, it supports reliable harness assemblies and streamlined maintenance across automation projects.
Product Information
Extended Description
UTSX7JC1210SX Eaton: Jam nut receptacle, with cable gland backshell, for 10 female contacts, IP68/69K, keying X; UTSX7JC1210SX
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC1210SX
Product Length/Depth
77.5 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
28 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
10
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
Sealed performance drives uptime and reliability in washdown and dusty environments, reducing maintenance costs and unplanned downtime by protecting signal and power paths. The 10-position crimp contact arrangement and a 1/3 bayonet coupling deliver a compact, high-density interface that speeds mating/demating during panel assembly and field service. A straight backshell with a sealing gland enables simple, robust cable routing while preserving IP ratings, which simplifies installation in tight control cabinets and equipment bays. The plastic shell (shell size 12) keeps weight low without sacrificing impact resistance, helping minimize overall assembly weight in mobile machinery and robotics. Operating from -40 °C to 105 °C and RoHS-compliant, the UTSX7JC1210SX ensures performance across harsh thermal cycles and regulatory environments, safeguarding long-term device integrity. The jam nut receptacle version ships with the connector, and offers up to 250 mating cycles, delivering a predictable lifecycle for frequent disconnections in automation lines, test benches, and production equipment. For system designers, this means fewer special parts, faster panel builds, and consistent performance across the plant.
