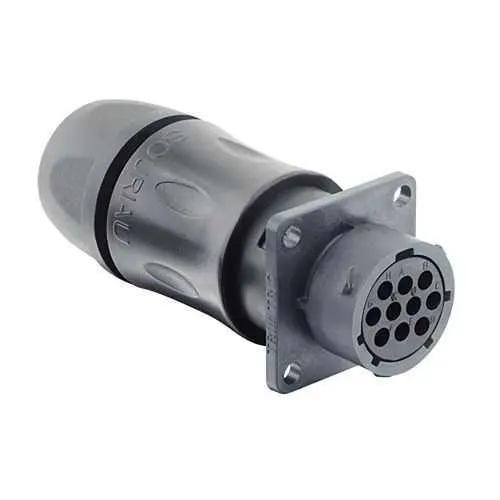

Eaton UTSX7JC1210SY Plastic Bayonet Connector - IP68/69K
Part Number: UTSX7JC1210SY
Quick Summary
Eaton UTSX7JC1210SY plastic bayonet connector provides rugged, IP-rated electrical connections for harsh industrial environments. Engineers face challenges with moisture ingress, vibration, and tight harness spaces, and this design addresses these pain points with a jam nut receptacle and a sealing gland backshell. IP68/69K sealing and RoHS compliance help meet regulatory demands and protect sensitive electronics in outdoor, washdown, or dusty facilities. With straight backshell orientation and a Y-key arrangement, mating remains fast yet secure, lowering field service time and minimizing risk. In practice, this enables denser wiring harnesses in automation panels and mobile machinery, delivering higher reliability and reduced downtime over the life of the installation.
Product Information
Extended Description
UTSX7JC1210SY Eaton: Jam nut receptacle, with cable gland backshell, for 10 female contacts, IP68/69K, keying Y; UTSX7JC1210SY
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC1210SY
Product Length/Depth
77.5 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
28 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
10
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
Feature: Jam nut receptacle with a sealing gland backshell and 10 female contacts. Business Impact: Provides a secure, compact interface that resists ingress and vibration, reducing leak paths and rework. Application: Control panels and robotics harnesses where space is at a premium. Feature: IP68/69K sealing and RoHS compliance. Business Impact: Ensures durable performance in washdown and dusty environments while simplifying regulatory compliance. Application: Industrial automation lines, outdoor equipment, and food-processing environments. Feature: 1/3 bayonet coupling and straight backshell. Business Impact: Enables fast, tool-free mating with reliable retention, cutting maintenance time. Application: Robotics, conveyors, and automated packaging systems. Feature: 10 contacts, shell size 12, length 77.5 mm, width 31.8 mm, weight 28 g. Business Impact: Compact, lightweight wiring harnessing without sacrificing circuit density. Application: Space-constrained panels and mobile machinery. Feature: Mating cycles 250 and operating range -40 to 105 °C. Business Impact: Long service life under thermal swings and vibration, reducing replacement costs. Application: Harsh industrial automation and remote installations with broad temperature exposure.
