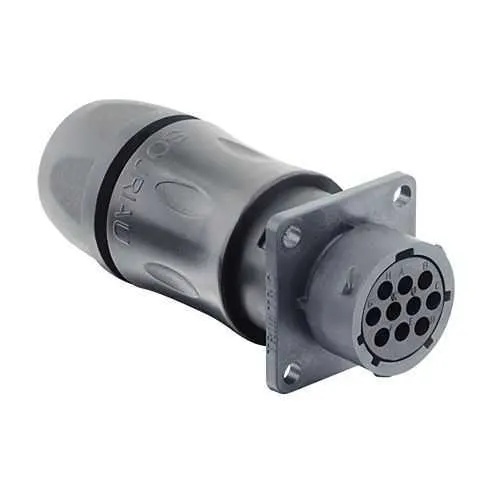

Eaton UTSX7JC1210SZ Plastic Bayonet Connector - IP68
Part Number: UTSX7JC1210SZ
Quick Summary
The Eaton UTSX7JC1210SZ is a plastic circular bayonet connector for 10-contact assemblies in rugged automation. Engineers often struggle with reliable sealing, fast field installation, and maintaining uptime in washdown or outdoor environments. Its IP68/69K sealing and RoHS compliance help meet harsh-duty standards, while jam-nut receptacle design supports easy mounting and robust panel retention. The UTSX series offers Z-key orientation and a cable gland backshell that simplifies wiring in tight spaces. For procurement and maintenance, rugged construction translates to lower service costs, fewer field faults, and longer equipment life in industrial facilities.
Product Information
Extended Description
UTSX7JC1210SZ Eaton: Jam nut receptacle, with cable gland backshell, for 10 female contacts, IP68/69K, keying Z; UTSX7JC1210SZ
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC1210SZ
Product Length/Depth
77.5 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
28 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Z
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
10
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
10
Number of cavity #20
10
Salt spray
500 hour
Feature → Business Impact → Application: The 10-contact arrangement with 1/3 bayonet coupling and Z-key orientation, presented as a jam nut receptacle, simplifies mating and prevents misalignment. This translates into faster assembly and fewer mis-wired connections on control panels, especially in multi-axis drives and sensor networks across packaging and automation lines. Feature → Business Impact → Application: The plastic shell, shell size 12, and compact footprint deliver a lightweight, cost-effective housing that reduces enclosure mass and simplifies routing in tight spaces. Practically, this supports easier panel mounting and lower total installed cost in OEM machines and retrofit projects. Feature → Business Impact → Application: The sealing gland backshell and IP68/69K rating deliver robust ingress protection against dust and water and withstand washdowns. For food processing, automotive, and outdoor equipment, this means fewer field failures and longer service intervals. Feature → Business Impact → Application: Operating from -40 °C to 105 °C and RoHS-compliant materials ensure reliable performance across climate zones and regulated environments. This reduces risk during temperature swings and helps with compliance documentation during audits. Feature → Business Impact → Application: Mating cycles of 250 and ten-position layout support durable connections with a long service life in high-duty automation. This benefits maintenance planning and ROI by decreasing replacement cycles and downtime on critical lines.
Get a Quick Quote for a Eaton UTSX7JC1210SZ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX7JC1210SZ?
Enquire Now
FAQs
Installation begins with aligning the Z-key orientation, then securing the jam nut receptacle to the panel. Attach the cable glands to the backshell for proper sealing, route the crimp female contacts, and mate with the corresponding UTSX plug. Ensure the IP68/69K seal is intact and verify mating cycles remain within the 250-cycle rating to maintain reliability.
Its IP68/69K sealing protects against water, dust, and high-pressure washdowns, while RoHS compliance ensures toxin-free materials. The metal-free plastic shell keeps weight down, and the sealing gland backshell supports durable, field-installable cabling in outdoor or wet plant areas.
Yes. It is designed as part of the UTSX series with 10-contact configurations and Z-key orientation, ensuring reliable mating with compatible UTSX plugs and jam nut receptacle assemblies. The straight backshell and sealing gland option facilitate seamless integration into existing layouts.
Consider 10 cavities, 1/3 bayonet coupling, 77.5 mm length, 31.8 mm width/height, 28 g weight, plastic shell, shell size 12, and 250 mating cycles. The connector supports crimp female contacts and is RoHS compliant, suitable for -40 °C to 105 °C environments.
Although unit price varies by supplier, advantages include reduced maintenance due to IP-rated sealing, faster field assembly due to the jam nut receptacle design, and longer service life from durable plastics and robust mating mechanisms. In high-usage lines, these factors translate to lower downtime and improved equipment uptime.
