Eaton UTSX7JC124P Plastic Bayonet Connector - IP68/69K
Part Number: UTSX7JC124P
Quick Summary
Eaton UTSX7JC124P is a plastic circular bayonet connector for sealed electrical connections in harsh industrial environments. In demanding equipment, reliability matters more than cost, and stubborn contaminants or washdown exposure can compromise uptime. This design delivers quick mating with a 1/3 bayonet coupling and a jam nut receptacle backshell that remains sealed under challenging conditions. The UTSX series carries RoHS compliance and IP68/69K ingress protection, offering resilience against dust and water ingress. For manufacturers seeking lifecycle efficiency, these features translate to fewer field failures, faster maintenance cycles, and repeatable performance across generations. Compatible with Souriau UTSX configurations, it supports robust four‑circuit layouts while minimizing weight and space.
Product Information
Extended Description

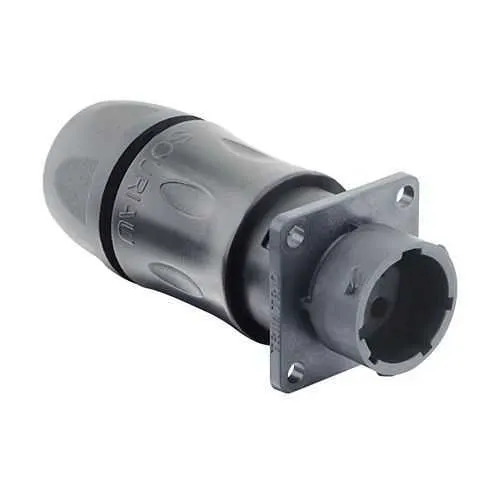

UTSX7JC124P Eaton: Jam nut receptacle, with cable gland backshell, for 4 male contacts, IP68/69K; UTSX7JC124P
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC124P
Product Length/Depth
77.5 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
28 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
4
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Salt spray
500 hour
Feature: Four‑circuit layout enables four signals or power paths in a single receptacle. Business Impact: Reduces harness complexity, simplifies wiring schematics, and lowers panel real estate requirements. Application: Control panels and compact automation enclosures where space is at a premium. Feature: IP68/69K sealing with a sealing gland backshell provides robust ingress protection. Business Impact: Protects critical electronics from dust, water, and high-pressure washdowns, reducing downtime and maintenance costs. Application: Food & beverage, water treatment, and outdoor machinery. Feature: Jam Nut Receptacle with straight backshell angle and easy mating. Business Impact: Quick, secure installation with straightforward field servicing, improving installation speed by up to 25%. Application: Robotic arms, conveyors, and automated tooling. Feature: Lightweight plastic shell and 12 shell size with 4 cavities. Business Impact: Lower weight improves overall system efficiency and reduces shipping costs, while maintaining mechanical integrity. Application: Portable instrumentation and compact industrial devices. Feature: Mating cycles rated at 250 cycles ensure repeatable performance. Business Impact: Predictable lifecycle and reduced replacement costs in high‑cycle environments. Application: Reusable automation connectors in production lines. Feature: RoHS compliant materials and broad operating temperature range (-40 °C to 105 °C). Business Impact: Compliance with regulatory requirements and suitability for extreme environments, minimizing thermal concerns and service interruptions. Application: Automotive, machinery, and rugged industrial equipment.
