Eaton UTSX7JC124S Plastic Circular Bayonet - IP68/69K
Part Number: UTSX7JC124S
Quick Summary
The Eaton UTSX7JC124S plastic circular bayonet connector enables robust power and signal links in harsh industrial environments. Maintenance headaches from unreliable seals or mismatched backshells can lead to leaks and costly downtime. IP68/69K sealing, RoHS compliance, and a rated 250 mating cycles ensure resilience through washdowns and long-term service. As a jam-nut receptacle with a sealing gland backshell for four female contacts, it simplifies field assembly, reduces mounting steps, and supports compact, reliable automation connections. These attributes translate to reduced spare parts, faster maintenance windows, and predictable performance in robotics, packaging, and material handling lines.
Product Information
Extended Description

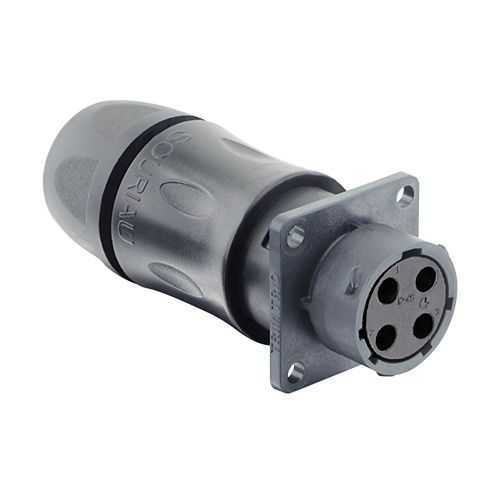

UTSX7JC124S Eaton: Jam nut receptacle, with cable gland backshell, for 4 female contacts, IP68/69K; UTSX7JC124S
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC124S
Product Length/Depth
77.5 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
28 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
4
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Salt spray
500 hour
IP68/69K sealing and RoHS compliance protect equipment and enable use in washdown zones, outdoor installations, and dusty factories while meeting environmental standards. The 1/3 bayonet coupling provides fast, vibration-resistant mating with reliable retention, minimizing downtime during line changes or servicing. The jam-nut receptacle with a sealing gland backshell delivers a rugged, weatherproof interface that remains sealed after cable routing, while four female crimp contacts support power and signal in a single, compact unit. Compatibility and installation advantages include straight backshell orientation and delivered-with-connector readiness, which reduce field labor and enable plug-and-play integration. With operating temperatures from -40 °C to 105 °C and a 250-mating-cycle rating, this connector supports harsh environments and frequent connections typical in automation lines. The lightweight plastic shell (shell size 12) and 77.5 mm length create a compact footprint for enclosed controls, robotics, and material-handling assemblies. In practice, users experience fewer spare parts, lower maintenance costs, and improved reliability across robotics, packaging, and conveyor systems thanks to its rugged sealing and quick-connect design.
