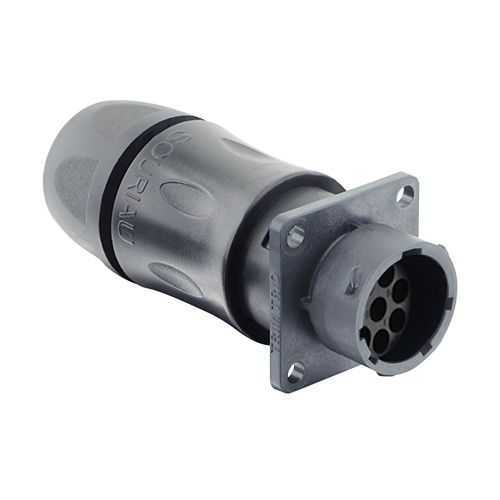

Eaton UTSX7JC128PW Plastic Circular Bayonet Connector - IP68
Part Number: UTSX7JC128PW
Quick Summary
Eaton Souriau UTSX series plastic circular bayonet connector safely links sensors and actuators in rugged industrial environments. In harsh facilities, seal integrity and quick, reliable installation are ongoing challenges that can drive downtime and maintenance costs. Key certifications include IP68/69K sealing and RoHS compliance, offering robust vibration tolerance and durable contact performance. This connector helps standardize interfaces across machines, reducing spares complexity and speeding wiring in control panels. Designed for high reliability, it supports field service and scalable automation without sacrificing safety.
Product Information
Extended Description
UTSX7JC128PW Eaton: Jam nut receptacle, with cable gland backshell, for 8 male contacts, IP68/69K, keying W; UTSX7JC128PW
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC128PW
Product Length/Depth
77.5 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
27 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
08
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
8
Number of cavity #16
8
Salt spray
500 hour
IP68/69K sealing with a sealing gland backshell delivers washdown-ready protection, reducing corrosion risk and service interruptions in harsh environments; business impact is lower maintenance costs and longer service intervals, enabling uptime in automated lines and packaging equipment. The 8-crimp, 1/3 bayonet contact system with a jam nut receptacle provides fast, secure mating, minimizing installation time and alignment errors on control panels and robotics cells. With a lightweight plastic shell, shell size 12, and compact 77.5 mm length, the connector enables tight routing in crowded enclosures and compact machines, boosting design flexibility and reducing panel footprint. Operating from -40 °C to 105 °C and rated for 250 mating cycles, it supports reliable operation in temperature-varied production floors, quelling concerns about performance under vibration. Delivered with connector and RoHS compliant, this solution simplifies sourcing, reduces supply chain risk, and improves long-term maintenance planning for automation systems. Salt spray resistance to 500 hours adds corrosion protection in coastal or humid plants, enhancing lifecycle costs and field reliability for complex machinery and conveyors.
