Eaton UTSX7JC128S Plastic Circular Bayonet - IP68/69K
Part Number: UTSX7JC128S
Quick Summary
Eaton UTSX7JC128S is a plastic circular bayonet connector for rugged industrial equipment. Engineers often struggle with sealed, vibration-tolerant connections that survive frequent mating cycles in demanding environments. With IP68/69K sealing and RoHS compliance, it tolerates -40 to 105 °C and resists harsh exposure on the factory floor. As part of the Souriau UTSX family, it uses an 8-contact jam-nut receptacle with a cable gland backshell to simplify installation and maintenance. This combination delivers reliable performance, easy field servicing, and reduced downtime in automation panels, outdoor machinery, and mobile equipment. It's designed for long service life.
Product Information
Extended Description

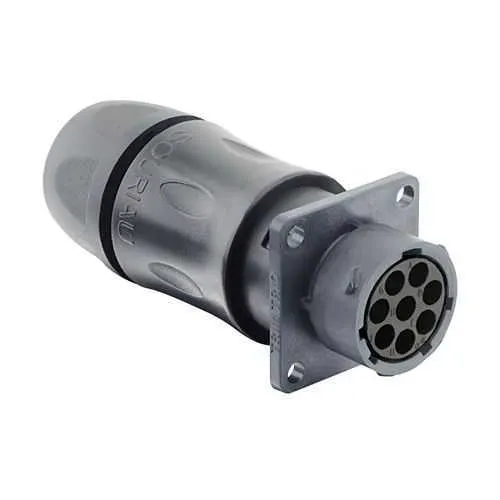

UTSX7JC128S Eaton: Jam nut receptacle, with cable gland backshell, for 8 female contacts, IP68/69K; UTSX7JC128S
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC128S
Product Length/Depth
77.5 mm
Product Height
31.8 mm
Product Width
31.8 mm
Product Weight
27 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
08
Shell material
Plastic
Shell size
12
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
8
Number of cavity #16
8
Salt spray
500 hour
Feature: IP68/69K sealing provides superior ingress protection for the connector joining. Business Impact: Minimizes water, dust, and washdown exposure, reducing field failures and warranty costs. Application: Ideal for outdoor machinery, washdown zones, and harsh industrial environments. Feature: Jam-nut receptacle with cable gland backshell simplifies mounting and termination. Business Impact: Speeds installation and improves termination reliability, lowering labor costs and rework. Application: Control panels and machine enclosures where quick, secure sealing is required. Feature: 1/3 bayonet coupling with 8-contact layout enables fast mating and reliable electrical performance. Business Impact: Reduces downtime during servicing and maintains consistent signal integrity across cycles. Application: Robotic cells, conveyors, and automation modules with frequent connection/disconnection. Feature: Operating range -40 °C to 105 °C and RoHS compliance ensure durable performance in extreme conditions. Business Impact: Supports long service life with reduced maintenance cycles and regulatory compliance. Application: Industrial plants, metalworking, and food/ Beverage processing lines. Feature: 8 contacts in shell size 12 with salt spray resistance and jam-nut receptacle type. Business Impact: Maximizes contact reliability under vibration, corrosion, and contamination; lowers replacement costs. Application: Sensor arrays, power distribution, and control networks across demanding applications.
Get a Quick Quote for a Eaton UTSX7JC128S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX7JC128S?
Enquire Now
FAQs
To install, align the receptacle in the panel cutout, screw on the jam-nut to secure the connector, and connect the eight crimp female contacts using the matching 8-position cavity. Attach the cable gland backshell for sealing and ensure the back orientation is the N position. Tighten securely to maintain IP68/69K protection during operation.
The UTSX7JC128S features IP68/69K sealing, RoHS compliance, and a wide operating temperature range from -40 °C to 105 °C. It withstands salt spray for up to 500 hours and provides 250 mating cycles, ensuring reliability in washdown zones, dust-prone areas, and high-vibration industrial settings.
Yes, the connector supports eight crimp female contacts configured in the 8-cavity layout. It is rated for up to 250 mating cycles, providing durable performance in repetitive connect/disconnect scenarios such as automated conveyors, robotics, and field service environments.
The UTSX7JC128S is RoHS compliant, aligning with restrictions on hazardous substances. It carries IP68/69K ingress protection suitable for submerged or high-pressure washdown environments. While CE labeling is not specified here, the RoHS rating helps ensure regulatory suitability for European markets in many industrial applications.
The jam-nut receptacle, straight backshell, and IP68/69K sealing reduce field maintenance by preventing ingress and simplifying terminations. Quick mating with the 1/3 bayonet coupling minimizes downtime during servicing. Over the device life, this translates to lower maintenance costs, fewer unscheduled outages, and improved overall equipment effectiveness (OEE).
