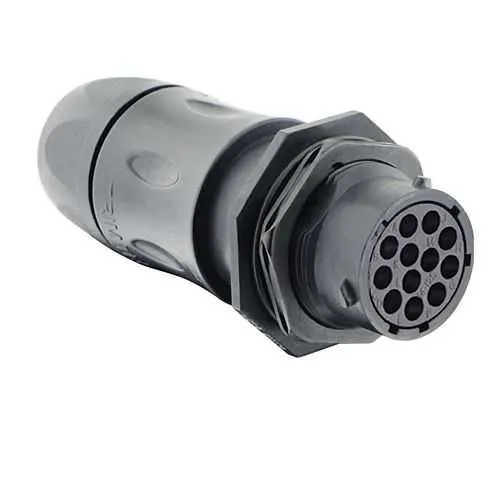

Eaton UTSX7JC1412S Plastic Bayonet Connector - IP68/69K
Part Number: UTSX7JC1412S
Quick Summary
The Eaton UTSX7JC1412S Plastic Bayonet Connector is a rugged circular electrical connector designed for harsh industrial environments. Engineers often wrestle with ingress protection, seal failures, and tedious field retrofits when wiring conveyors, pumps, or outdoor equipment. This part features IP68/69K sealing and RoHS compliance, supporting reliable washdown performance and environmental safety across global installations. With a 12-contact layout and a compact 84 mm length, it enables scalable harnessing while keeping weight and footprint low for OEM assembly. By combining quick 1/3 bayonet mating with a jam nut receptacle and sealing gland backshell, it reduces installation time and maintenance costs in demanding industrial settings.
Product Information
Extended Description
UTSX7JC1412S Eaton: Jam nut receptacle, with cable gland backshell, for 12 female contacts, IP68/69K; UTSX7JC1412S
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC1412S
Product Length/Depth
84 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
34 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
12
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
12
Number of cavity #16
12
Number of cavity #20
0
Salt spray
500 hour
IP68/69K sealing with a jam nut receptacle and sealing gland backshell provides robust ingress protection against water, dust, and washdown exposure. This reduces ingress-related failures and extends service intervals, lowering maintenance costs and downtime on conveyors, robotic cells, and outdoor equipment. The 12-position layout enables high contact density with fast, reliable mating via 1/3 bayonet coupling, cutting field assembly time and minimizing mis-mates in panel or harness installations. The lightweight plastic shell (shell size 14) paired with a fixed 84 mm length and 34 g weight yields a compact, space-efficient footprint for tight control cabinets and mobile machinery. A broad operating temperature range (-40 °C to 105 °C) and RoHS compliance ensure performance and regulatory alignment across global facilities. Durable 250 mating cycles support long-life automation in high-cycle environments, reducing lifecycle costs and spare-part inventory.
