Eaton UTSX7JC1419P Circular Bayonet Connector - IP68/IP69K
Part Number: UTSX7JC1419P
Quick Summary
The Eaton Souriau UTSX7JC1419P is a circular bayonet connector designed for rugged automation and outdoor equipment. Engineers often struggle with moisture ingress, fast installation, and unreliable mating in harsh environments. This model delivers IP68/IP69K sealing and RoHS compliance, with 250 mating cycles to support long service life. The jam nut receptacle and sealing gland backshell simplify assembly, while a 19-pin layout fits comprehensive control systems. Compact, RoHS-compliant, and designed for OEM integration, it helps reduce downtime and total cost of ownership across industrial applications. Whether upgrading legacy equipment or designing new machinery, the UTSX7JC1419P offers reliable performance in temperatures from -40 to 105°C.
Product Information
Extended Description

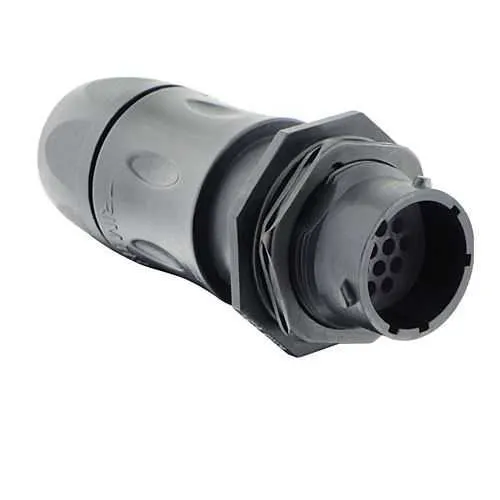

UTSX7JC1419P Eaton: Jam nut receptacle, with cable gland backshell, for 19 male contacts, IP68/69K; UTSX7JC1419P
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC1419P
Product Length/Depth
84 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
35 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
19
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature: Jam nut receptacle with cable gland backshell; Business Impact: Provides robust environmental sealing and streamlined cable entry, reducing field maintenance and ingress risk; Application: Control panels in harsh environments. The UTSX7JC1419P supports 19-position crimp contacts and a 1/3 bayonet coupling, enabling quick, secure mating even in confined spaces; Business Impact: Speeds installation and ensures repeatable connections during equipment startups. Application: Mobile machinery and outdoor automation. Feature: Plastic shell with RoHS compliance and a 84 mm length; Business Impact: Lightweight, corrosion-resistant housing that tolerates extreme temperatures while minimizing enclosure depth; Application: Compact PLCs and switchgear enclosures. Feature: Delivered with connector and jam nut receptacle; Business Impact: Reduces assembly steps and inventory complexity, improving project timelines; Application: OEM harnesses and panel assemblies. Feature: Mating cycles of 250 and 19-contact layout; Business Impact: Demonstrates reliable life-cycle performance for demanding industrial applications; Application: Heavy-duty automation and process control. Feature: Operating range −40 to 105°C; Business Impact: Maintains performance across outdoor, automotive, and factory-floor environments; Application: Equipment in varied climates and temperatures. Industry context: The Eaton Souriau UTSX series is trusted for tough industrial jobs, providing consistent connectivity for machines, conveyors, and robotics, while meeting RoHS and environmental standards.
