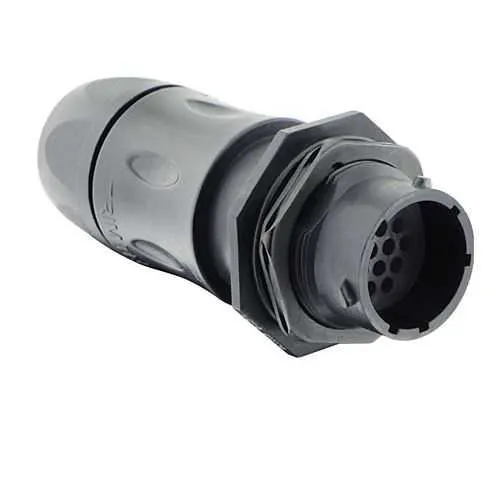

Eaton UTSX7JC1419PX Plastic Bayonet Connector - IP68/69K
Part Number: UTSX7JC1419PX
Quick Summary
The Eaton UTSX7JC1419PX is a jam-nut, plastic circular bayonet connector for rugged field wiring in automated machinery. Engineers often wrestle with washdowns, vibration, and tight installation tolerances, and this design helps reduce maintenance downtime. IP68/69K sealing and RoHS compliance provide reliable protection in harsh environments, while a compact 19‑way layout supports efficient wiring. The UTSX series delivers robust performance for robotics, conveyors, and packaging lines, with easy integration into existing automation networks and long-term supply continuity.
Product Information
Extended Description
UTSX7JC1419PX Eaton: Jam nut receptacle, with cable gland backshell, for 19 male contacts, IP68/69K, keying X; UTSX7JC1419PX
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC1419PX
Product Length/Depth
84 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
35 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
19
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature → Business Impact → Application: The UTSX7JC1419PX uses a 19‑position jam-nut receptacle in a plastic circular shell, enabling a high-density connection that saves panel space and reduces wiring complexity on automated assembly lines. This directly lowers installation time and test effort while increasing reliability in tight spaces such as robotic arms and conveyor junctions. Feature → Business Impact → Application: IP68/69K sealing with a gland backshell provides superior ingress protection against dust and high-pressure washdowns, reducing unexpected outages in food processing, material handling, and external machinery. Feature → Business Impact → Application: The 1/3 bayonet coupling allows fast, tool-free mating, minimizing downtime during maintenance and field upgrades in industrial plants. Feature → Business Impact → Application: Operating from -40 to 105 °C and a 250 mating cycle life delivers consistent performance across diverse climates and busy production floors, improving ROI for equipment fleets in manufacturing and logistics. Feature → Business Impact → Application: The RoHS-compliant shell, straight backshell and X-oriented connector orientation simplify installation in compact enclosures, supporting scalable automation architectures and straightforward field wiring diagrams. Feature → Business Impact → Application: Weighing 35 g with a 84 mm length and 30.2 mm width/height, the UTSX7JC1419PX minimizes added fixture weight and fits within tight machine envelopes, enhancing overall system efficiency in robotics and packaging lines.
Get a Quick Quote for a Eaton UTSX7JC1419PX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX7JC1419PX?
Enquire Now
FAQs
Yes. The UTSX7JC1419PX is a jam-nut receptacle in the UTSX family with a 19‑position layout and 1/3 bayonet coupling. For full compatibility, pair it with mating halves from the same UTSX series that share the 19‑cavity configuration and gland backshell interface.
This receptacle delivers IP68/69K sealing and RoHS compliance, allowing operation in washdown and dusty environments. It supports a wide temperature range from -40 °C to 105 °C, enabling reliable performance in outdoor, industrial, and climate-variable applications.
Yes. The IP68/69K sealing, along with the gland backshell, provides robust ingress protection against dust and high-pressure liquids typical of washdown scenarios found in food processing, packaging, and material handling facilities.
The UTSX7JC1419PX supports up to 250 mating cycles, offering dependable repeated connect/disconnect operations during maintenance, line changes, and upgrades without compromising signal integrity.
Use the gland backshell with the jam-nut receptacle as specified, ensure correct connector orientation (X), and follow the recommended crimp contact procedure. The straight backshell angle and compact 84 mm length aid in tight spaces, while 19 cavities reduce wiring complexity and simplify field diagrams.
