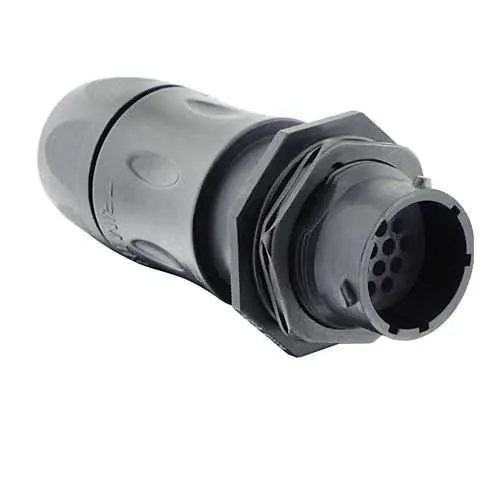

Eaton UTSX7JC1419PY - IP68/69K Bayonet Connector
Part Number: UTSX7JC1419PY
Quick Summary
The Eaton UTSX7JC1419PY plastic circular bayonet connector is a rugged IP68/69K interface designed for harsh industrial environments. Engineers often battle leaks, wear, and slow field maintenance when wiring multi-pin harnesses in tight spaces. With RoHS compliance, IP68/69K sealing, and up to 250 mating cycles, it delivers reliability in demanding applications. The jam-nut receptacle uses a sealing gland backshell with a straight orientation and Y-keying to simplify installation and service. Its 19-position layout supports scalable automation, robotics, and packaging line integration while reducing system complexity and downtime.
Product Information
Extended Description
UTSX7JC1419PY Eaton: Jam nut receptacle, with cable gland backshell, for 19 male contacts, IP68/69K, keying Y; UTSX7JC1419PY
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC1419PY
Product Length/Depth
84 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
35 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
19
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature: IP68/69K sealing and RoHS compliance. Business Impact: Proven protection against ingress and regulatory compliance reduces field service calls and maintenance costs. Application: Food and beverage and outdoor automation where washdown is common. Feature: Jam Nut Receptacle with Sealing Gland Backshell. Business Impact: Stable mounting and cable protection, ensuring long-term reliability in vibration-prone environments. Application: Robotic arms and packaging machinery with frequent cable movements. Feature: 1/3 Bayonet coupling and Y orientation. Business Impact: Fast, secure mating in constrained panels, lowering assembly time and labor costs. Application: Panel installations in automated lines and conveyors. Feature: 19-contact, Crimp, Pin (Male) contacts. Business Impact: Dense signal/power capability while preserving compact form factor, enabling richer I/O without enlarging the footprint. Application: Control cabinets and distributed I/O networks. Feature: Operating range -40 to 105 °C and 500-hour salt spray resistance. Business Impact: Extended life in outdoor and industrial environments with minimal corrosion risk. Application: Heavy equipment, energy distribution, and process automation.
