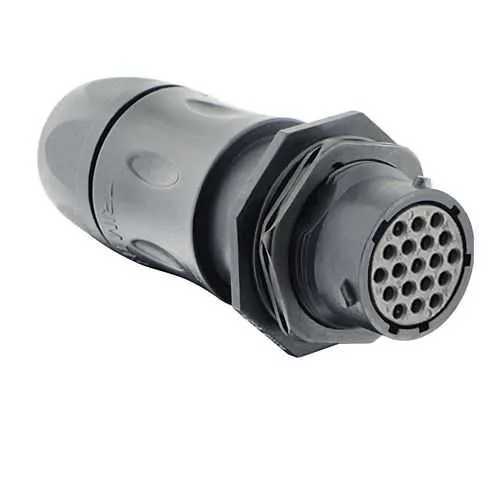

Eaton UTSX7JC1419SW Plastic Bayonet Connector - IP68/69K
Part Number: UTSX7JC1419SW
Quick Summary
Eaton UTSX7JC1419SW plastic circular bayonet connector delivers reliable electrical connections for rugged industrial equipment. In demanding environments, moisture ingress and sealing failures can halt critical automation lines, driving maintenance costs. This UTSX series receptacle leverages IP68/69K sealing and RoHS compliance to resist washdown, dust, and immersion, reducing field service calls. The 19‑position layout with jam nut receptacle, backshell gland, and straight orientation (W) provides a compact, versatile interface for heavy machinery, robotics, and process control. With a rated 250 mating cycles and a wide operating range from -40 to 105°C, it supports long service life even under thermal cycling. For engineers, this means simpler installations, standardized spares, and lower total cost of ownership in industrial automation.
Product Information
Extended Description
UTSX7JC1419SW Eaton: Jam nut receptacle, with cable gland backshell, for 19 female contacts, IP68/69K, keying W; UTSX7JC1419SW
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC1419SW
Product Length/Depth
84 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
35 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
19
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature – 19-position layout enables dense signal and power transfers in a single mating interface, reducing panel real estate and wiring complexity. Business impact – lowers assembly time and wiring errors, boosting overall equipment uptime. Application – ideal for control panels, robotics interfaces, and heavy machinery where space is at a premium. Feature – IP68/69K sealing with jam nut receptacle and sealing gland backshell delivers robust ingress protection even after repeated washdowns. Business impact – protects internal contacts from moisture and dust, reducing failure rates and warranty costs. Application – automotive manufacturing, food & beverage processing lines, and outdoor equipment where seals endure harsh cleaning cycles. Feature – 84 mm length, 30.2 mm width, 30.2 mm height with 35 g weight and 250 mating cycles. Business impact – predictable replacement intervals and lightweight installation in portable equipment. Application – field deployments and compact machine builds requiring dependable durability. Feature – plastic shell, RoHS compliance, and salt spray resistance of 500 hours plus -40 to 105 °C operating range. Business impact – compliant design for regulated environments and resilience in thermal and corrosive conditions. Application – aerospace, industrial automation, and outdoor installations where material choice and longevity matter. Feature – Orientation W, 1/3 Bayonet coupling, delivered with connector, crimp contact, and jam nut receptacle compatibility. Business impact – simplifies installation, stocking of spares, and fast field plugging in multi‑connector harnesses. Application – system integrators designing modular panels and serviceable field connections.
Get a Quick Quote for a Eaton UTSX7JC1419SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX7JC1419SW?
Enquire Now
FAQs
Yes. The UTSX7JC1419SW is a jam nut receptacle designed to work with the UTSX family, featuring a sealing gland backshell for IP68/69K protection. It supports the W orientation and 1/3 bayonet coupling, delivering a secure, sealed connection suitable for washdown environments and humid installations.
This 19‑cavity receptacle supports crimp contacts in a 19‑position layout, with a mating cycle rating of 250. It measures 84 mm in length and 30.2 mm in width and height, weighs 35 g, and operates from -40 °C to 105 °C. It is plastic in shell material and RoHS compliant, designed for rugged industrial use.
Industries such as automotive manufacturing, robotics, heavy machinery, process automation, and outdoor equipment benefit from its IP68/69K sealing, high-contact density, and compact form factor. Applications include control panels, sensor interfaces, and field connections where reliable sealing, ease of installation, and long service life are critical.
The connector is RoHS compliant and features IP68/69K sealing for demanding washdown and immersion scenarios. It also offers salt spray resistance (500 hours) and operates across a wide temperature range (-40 to 105 °C), supporting compliance with industrial standards and demanding environments.
The jam nut receptacle with a sealing gland backshell simplifies sealing and mounting, reducing leak points and field repairs. Its 19‑contact density minimizes harness complexity, while the 250 mating cycles and durable plastic shell lower downtime and spare parts costs, leading to a lower total cost of ownership in automation projects.
