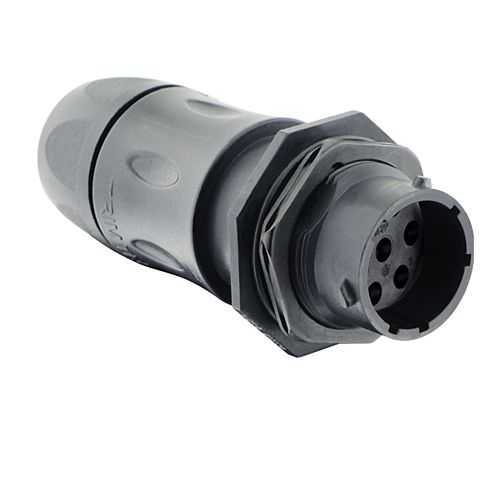

Eaton UTSX7JC147P Plastic Circular Bayonet Connector - IP68
Part Number: UTSX7JC147P
Quick Summary
UTSX7JC147P is a rugged plastic circular bayonet connector for sealed 7‑cavity control networks. End users often face water ingress, misalignment, and downtime during field connections. This solution delivers IP68/69K sealing and RoHS compliance, plus a jam-nut receptacle with a sealing gland backshell for reliable installation and easier cable management. With a compact 84 mm length, 30.2 mm width and 30.2 mm height, it remains lightweight yet durable across washdown and harsh environments. The Eaton UTSX7JC147P supports interchangeability within the Souriau UTSX family, offering predictable lead times and reduced maintenance costs for automation and packaging lines.
Product Information
Extended Description
UTSX7JC147P Eaton: Jam nut receptacle, with cable gland backshell, for 7 male contacts, IP68/69K; UTSX7JC147P
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC147P
Product Length/Depth
84 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
37 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
7
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
7
Number of cavity #16
7
Salt spray
500 hour
Feature: 7-position jam-nut receptacle with 7 male crimp contacts. Business Impact: ensures robust mating, consistent contact pressure, and reliable signal integrity even in vibration-heavy equipment. Application: robotics and automated assembly cells benefit from fewer intermittent connections and enhanced lifecycle performance. Feature: 1/3 Bayonet coupling with straight backshell and sealing gland. Business Impact: enables fast, tool-free mating while maintaining environmental sealing to prevent ingress. Application: washdown conveyors and outdoor machinery where quick maintenance is critical. Feature: Plastic shell, shell size 14, and jam nut receptacle design. Business Impact: lighter weight reduces overall system load and simplifies panel integration, lowering installation costs. Application: compact control enclosures and portable equipment. Feature: RoHS compliance, IP68 sealing, and salt spray resistance. Business Impact: regulatory compliance and long-term durability in corrosive environments, lowering total cost of ownership. Application: food & beverage, chemical processing, and outdoor automation. Feature: Operating temperature range -40 °C to 105 °C and 250 mating cycles. Business Impact: withstands extreme factory conditions and lifecycle demands, reducing unplanned downtime. Application: harsh industrial plants and outdoor automation where reliability matters. Feature: 7 cavities with straight orientation and delivered with connector option. Business Impact: straightforward installation, consistent wiring schemes, and predictable procurement workflows. Application: panel builders and OEMs designing modular control systems.
Get a Quick Quote for a Eaton UTSX7JC147P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX7JC147P?
Enquire Now
FAQs
The UTSX7JC147P is designed as a 7‑cavity jam nut receptacle with crimp contacts for the Souriau UTSX family. It uses a 1/3 bayonet coupling and a straight backshell with a sealing gland, ensuring compatibility with standard Souriau UTSX mating plugs and robust environmental sealing for reliable panel connections in harsh machinery.
This connector operates from -40 °C to 105 °C and supports up to 250 mating cycles. The wide temperature range and high lifecycle rating make it suitable for industrial automation, outdoor equipment, and washdown environments where dependable mating over time is critical.
Yes. The device is IP68/69K rated with a sealing gland backshell, RoHS compliant, and built to resist salt spray exposure. This makes it ideal for washdown facilities, food processing lines, and outdoor installations where moisture exposure is routine.
The UTSX7JC147P emphasizes RoHS compliance and IP68 sealing (with IP69K sealing in the family context). It is designed to meet stringent industrial and environmental requirements, reducing regulatory risk for OEMs and integrators in regulated industries.
Its durable plastic shell, robust sealing gland backshell, and 7‑cavity crimp contacts provide reliable long-term performance with minimal field rework. The ability to interchange with Souriau UTSX components simplifies spare parts inventories and accelerates maintenance, delivering lower downtime and a favorable return on investment for automation projects.
