Eaton UTSX7JC147S Plastic Circular Bayonet Connector - IP68/69K
Part Number: UTSX7JC147S
Quick Summary
Eaton UTSX7JC147S is a plastic circular bayonet connector for reliable interconnections in industrial automation and machinery. In harsh environments, moisture ingress and vibration can disrupt signal integrity and cause downtime, making robust interconnects essential. This UTSX series receptacle features IP68/69K protection and RoHS compliance, with 7 contact positions and a 1/3 bayonet coupling for fast, secure mating. Its jam nut receptacle design and sealing gland backshell simplify panel mounting and ingress protection, reducing maintenance intervals. For engineers and procurement teams, this connector delivers predictable performance, easy field servicing, and a compact footprint that fits tight panel layouts while maintaining signal integrity across multiple signals and power paths.
Product Information
Extended Description

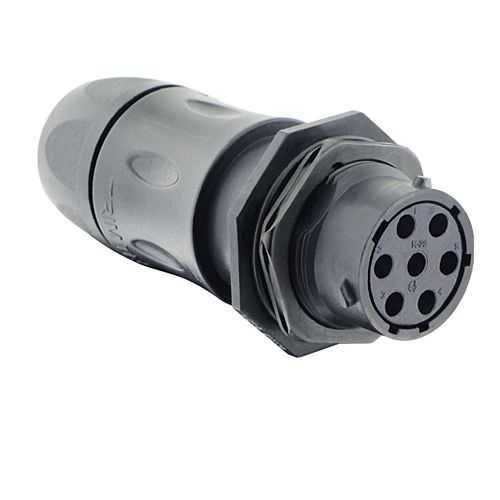

UTSX7JC147S Eaton: Jam nut receptacle, with cable gland backshell, for 7 female contacts, IP68/69K; UTSX7JC147S
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC147S
Product Length/Depth
84 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
37 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
7
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
7
Number of cavity #16
7
Salt spray
500 hour
Feature 1: 7-position receptacle with crimp contacts enables a single, multi-signal interconnect, reducing harness complexity and installation time—Business impact: lowers assembly time and upfront costs; Application: robotics and packaging lines where multiple sensors and actuators share a common connector. Feature 2: IP68/69K rating with Sealing Gland backshell provides robust ingress protection—Business impact: minimizes washdown-related failures; Application: food/ beverage or automotive assembly environments requiring frequent cleaning. Feature 3: 1/3 bayonet coupling offers quick, vibration-resistant mating—Business impact: lowers downtime during maintenance and changeovers; Application: high-cycle automation lines with frequent connector reseating. Feature 4: Jam nut receptacle and panel-mount capability streamline installation—Business impact: secure mounting reduces leak paths and vibration wear; Application: rugged enclosures and machine frames. Feature 5: Operating range -40 °C to 105 °C supports diverse climate zones—Business impact: broad deployment without temperature-related performance concerns; Application: outdoor or harsh indoor environments. Feature 6: Lightweight plastic shell (Shell size 14) with 84 mm length and 30.2 mm width/height—Business impact: compact footprint and reduced weight; Application: space-constrained control panels and slim machinery modules. Compatibility and compliance are reinforced by RoHS adherence and compatibility with UTSX series connectors, ensuring a seamless integration path for existing Eaton Souriau networks.
