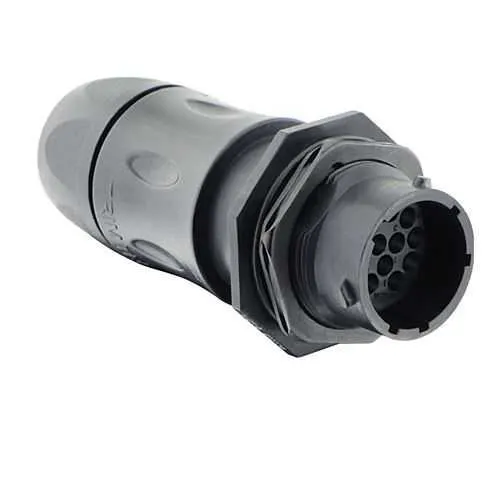

Eaton UTSX7JC1492P Plastic Circular Bayonet Connector - IP68/69K
Part Number: UTSX7JC1492P
Quick Summary
Eaton UTSX7JC1492P plastic circular bayonet connector provides reliable 12-pin connectivity in harsh industrial environments. Upgrading automation systems often exposes sealing, durability, and installation challenges that drive downtime and maintenance costs. RoHS compliance and IP68/IP69K sealing, plus a straight backshell and jam-nut receptacle, deliver rugged reliability for washdowns and immersion. With a compact 84 mm length and 12-contact layout, it enables efficient wiring and straightforward retrofits in automation panels and machinery. This design supports 12 crimp pins and a jam-nut receptacle, simplifying field terminations and panel mounting with consistent alignment. Its operating range from -40 to 105 °C and salt spray resistance further assure dependable performance in demanding environments.
Product Information
Extended Description
UTSX7JC1492P Eaton: Jam nut receptacle, with cable gland backshell, for 12 male contacts, IP68/69K; UTSX7JC1492P
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC1492P
Product Length/Depth
84 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
35 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
92
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
12
Number of cavity #16
12
Salt spray
500 hour
Feature → Business Impact → Application: 12-pin crimp contacts enable 12 circuits in a compact footprint, reducing panel footprint and simplifying harness designs while preserving signal integrity for automation controls. This translates to faster assembly, fewer wiring errors, and improved reliability in robotics, conveyors, and machine tills. Feature → IP68/IP69K sealing and a sealing gland backshell deliver immersion and high-pressure washdown resilience, dramatically reducing ingress risk in food processing, outdoor equipment, and washdown environments. This supports longer service intervals and lower maintenance costs while meeting stringent cleanliness and safety requirements. Feature → RoHS compliance and robust salt spray resistance ensure environmental and corrosion protection throughout the product life cycle, minimizing warranty claims and extending asset life in harsh industrial settings. Feature → 250 mating cycles and a durable jam-nut receptacle guarantee repeatable connections during maintenance cycles, lowering total cost of ownership. Feature → 84 mm length, shell size 14, and 12-contact layout provide a compact, easy-to-mount solution that fits tight control cabinets and machine enclosures without compromising performance. Feature → Straight backshell design and N orientation simplify alignment and installation in multi-cable harnesses, supporting faster field servicing and repeatable connector seating in complex automation architectures.
Get a Quick Quote for a Eaton UTSX7JC1492P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX7JC1492P?
Enquire Now
FAQs
Begin by preparing the 12 crimp contacts and the wiring harness, ensuring insulation and stripping length meet terminal specifications. Insert the male contacts into the jam nut receptacle, align the cable gland backshell, and tighten the jam nut to the mounting surface. Verify the straight backshell orientation (N) and ensure the sealing gland seats properly to maintain IP68/IP69K integrity. A final pull test confirms a secure, vibration-resistant connection suitable for washdown environments.
The connector features IP68/IP69K sealing and a sealing gland backshell, which provide robust protection against immersion and high-pressure washdowns. Its RoHS compliance adds environmental assurance, while the jam-nut receptacle design ensures a secure, watertight mounting. The 12-crimp contact arrangement and plastic shell contribute to a lightweight yet durable solution for demanding factory floors and outdoor equipment.
The UTSX7JC1492P operates from -40 °C to 105 °C, enabling use in both cold-start scenarios and high-temperature equipment. Salt spray resistance tested at 500 hours demonstrates strong corrosion protection, making it suitable for harsh environments, outdoor installations, and facilities with aggressive cleaning protocols.
This connector supports up to 250 mating cycles, indicating robust durability for frequent connections and disconnections during maintenance or reconfigurations. The 12-pin crimp arrangement and jam-nut receptacle design contribute to reliable repeatable connections, helping to lower maintenance downtime and prolong asset life in automation and control systems.
Yes, the UTSX7JC1492P adheres to RoHS standards, aligning with modern electrical and automation procurement requirements. Its compact 84 mm length, 12-pin layout, straight backshell, and predefined 14 shell size facilitate straightforward integration into automated panels, robotics harnesses, and control cabinets while ensuring reliable connections and clean electrical performance.
