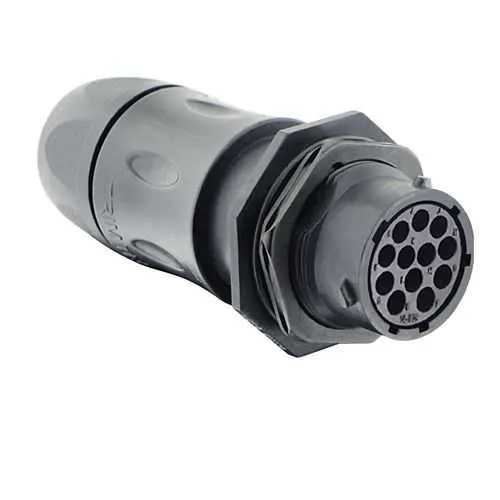

Eaton UTSX7JC1492SW Plastic Bayonet Receptacle - IP68/69K
Part Number: UTSX7JC1492SW
Quick Summary
Eaton Souriau UTSX7JC1492SW plastic circular bayonet connector enables rugged, watertight connections for outdoor automation and heavy equipment. Engineers struggle with ingress, vibration, and maintenance downtime when field connectors fail in harsh environments. IP68/69K sealing and RoHS compliance underpin reliability, while the jam-nut receptacle with 12 crimp contacts and 1/3 bayonet coupling speeds installation. Together, these features help reduce maintenance costs and maximize uptime on equipment where space is tight and environments are extreme. Designed for easy integration with straight backshell, W orientation, and a compact 84 mm length, it supports robust field terminations and long-term service life for industrial controls and automation panels.
Product Information
Extended Description
UTSX7JC1492SW Eaton: Jam nut receptacle, with cable gland backshell, for 12 female contacts, IP68/69K, keying W; UTSX7JC1492SW
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC1492SW
Product Length/Depth
84 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
35 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
92
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
12
Number of cavity #16
12
Salt spray
500 hour
Feature: IP68/69K sealing and RoHS compliance. Business Impact: Ensures performance in wet, dusty, and high-pressure environments, reducing field failure rates and regulatory risk. Application: Outdoor machinery, rugged automation panels. Feature: Jam Nut Receptacle with 12 crimp contacts. Business Impact: Simplifies installation, standardizes terminations, and improves signal integrity across all 12 circuits. Application: Control cabinets and equipment with multi-line harnesses. Feature: 1/3 Bayonet coupling. Business Impact: Fast, repeatable mating with positive retention, cutting assembly time and minimizing vibration-induced loosening. Application: Conveyor systems, robotic cells, packaging lines. Feature: Shell material is plastic; shell size 14; weight 35 g. Business Impact: Lightweight, compact design reduces overall harness weight and allows tighter panel layouts, improving installation efficiency and reducing transport costs. Application: Mobile equipment and compact automation enclosures. Feature: Operating temperature range -40 to 105 °C. Business Impact: Broad thermal tolerance supports reliable operation across outdoor and high-heat process environments, minimizing temperature-related downtime. Application: Industrial ovens, outdoorPLC enclosures, and harsh factories. Feature: Mating cycles up to 250. Business Impact: Demonstrates lifecycle durability, lowering replacement frequency and total cost of ownership. Application: Continuous production lines and automated machinery where frequent connect/disconnect is needed.
Get a Quick Quote for a Eaton UTSX7JC1492SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX7JC1492SW?
Enquire Now
FAQs
The UTSX7JC1492SW uses 12 crimp contacts in a jam-nut receptacle configuration and supports up to 250 mating cycles, delivering reliable reuse across repeated connect/disconnect cycles in demanding settings.
Yes. The connector offers IP68/69K sealing and a sealing gland backshell, ensuring robust ingress protection in wet, dusty, and high-pressure washdown scenarios, with RoHS compliance for regulatory alignment.
It is a Jam Nut Receptacle with a straight backshell and W orientation, designed for straightforward installation in compact enclosures and panels while maintaining a secure mating interface.
Align the connector halves, engage with a 1/3 turn of the bayonet coupling, and verify the seal. The design supports quick, repeatable mating with resistance to vibration and misalignment.
You gain a lightweight, RoHS-compliant solution with 12 contacts, durable 250-cycle mating, and IP68/69K sealing, reducing maintenance costs, downtime, and the total cost of ownership in harsh industrial environments.
