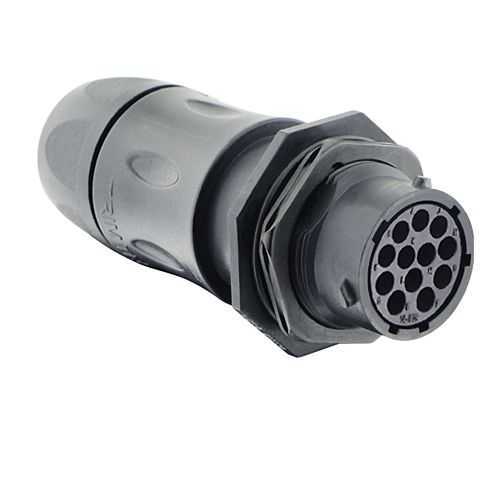

Eaton UTSX7JC1492SX Circular Bayonet Connector - IP68

Part Number: UTSX7JC1492SX
UTSX7JC1492SX
Manufacturer
Eaton
Part number
UTSX7JC1492SX
Category

Quick Summary

The Eaton UTSX7JC1492SX plastic circular bayonet receptacle provides 12‑contact connections for rugged industrial automation. Operators and maintenance teams often struggle with moisture ingress, corrosion, and uptime losses from unreliable connectors. Designed for harsh environments, it features IP68/69K sealing, RoHS compliance, and robust mating cycles to withstand washdowns and long service life. By integrating a jam nut receptacle with a sealing gland backshell and compatible orientation, it simplifies field installations while reducing wiring errors. For engineers and buyers, this translates to improved reliability, easier sourcing within the Eaton Souriau UTSX family, and lower total cost of ownership across automation lines.

Product Information

Extended Description

UTSX7JC1492SX Eaton: Jam nut receptacle, with cable gland backshell, for 12 female contacts, IP68/69K, keying X; UTSX7JC1492SX
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC1492SX
Product Length/Depth
84 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
35 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
X
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
92
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
12
Number of cavity #16
12
Salt spray
500 hour
UTSX0012AC.pdf

Feature → Business Impact → Application: The UTSX7JC1492SX uses a 12‑contact receptacle in a compact 84 mm length with a jam nut back receptacle. This enables dense wiring harnesses and streamlined panel layouts, reducing conduit runs and overall system footprint on robotic cells and packaging lines.

Feature → Business Impact → Application: IP68/69K sealing paired with RoHS compliance delivers washdown tolerance and chemical resistance, cutting downtime due to moisture ingress and corrosion while ensuring regulatory conformity in food, beverage, and outdoor equipment environments.

Feature → Business Impact → Application: Sealing Gland backshell and straight backshell angle simplify installation and cable management. Delivered with connector and X orientation supports quick field assembly, minimizing commissioning time on assembly lines and remote equipment.

Feature → Business Impact → Application: Plastic shell, shell size 14, and 12 contact cavities provide a cost‑effective, lightweight solution with steady mating performance for repetitive cycle operations in automation and machinery harnesses.

Feature → Business Impact → Application: Mating cycles rated at 250, plus a robust 12‑cavity layout, give predictable wear patterns and longer service life, improving maintenance planning and total cost of ownership in rugged environments such as construction, packaging, and outdoor gear.

Feature → Business Impact → Application: Operating temperature range from -40 °C to 105 °C broadens applicability to automotive, heavy equipment, and process automation where extreme temperatures are common.
