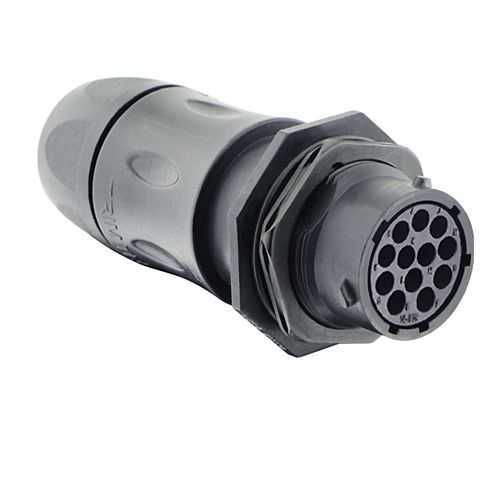

Eaton UTSX7JC1492SY Plastic Bayonet Connector - IP68/69K
Part Number: UTSX7JC1492SY
Quick Summary
Eaton UTSX7JC1492SY plastic bayonet connector provides sealed connections for automation equipment. When space is tight and exposure to dust and moisture threatens reliability, a robust IP68/69K seal matters. This RoHS-compliant unit offers up to 250 mating cycles, with a jam nut receptacle and a sealing gland backshell to simplify field installation and maintenance. The 84 mm length and 12-contact layout help reduce wiring footprint while delivering dependable performance in harsh industrial environments. Designed for easy integration with Souriau UTSX accessories, it supports scalable expansion without sacrificing reliability or service life.
Product Information
Extended Description
UTSX7JC1492SY Eaton: Jam nut receptacle, with cable gland backshell, for 12 female contacts, IP68/69K, keying Y; UTSX7JC1492SY
Product Name
Eaton Souriau UTSX series plastic circular bayonet connector
Catalog Number
UTSX7JC1492SY
Product Length/Depth
84 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
35 g
Environmental conditions
RoHS
Backshell angle
straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Layout
92
Shell material
Plastic
Shell size
14
Mating cycles
250
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
12
Number of cavity #16
12
Salt spray
500 hour
Feature: 12 female crimp contacts enable multi-signal and power transmission in a single connection. Business Impact: Reduces cable clutter and assembly time while improving signal integrity in dense control panels. Application: Sensor networks and actuator bundles in automated lines. Feature: 1/3 bayonet coupling offers quick mating with reliable alignment. Business Impact: Speeds field assembly and minimizes downtime during maintenance. Application: Robotics cells and packaging lines where rapid connector engagement is required. Feature: Sealing gland backshell and IP68/69K rating protect against water, dust, and washdown environments. Business Impact: Lowering maintenance costs and extending service intervals in harsh production areas. Application: Food, beverage, and automotive manufacturing lines with rigorous cleaning cycles. Feature: Jam Nut Receptacle with straight backshell angle supports sturdy, panel-mounted installations. Business Impact: Simplifies enclosure mounting and improves vibration resistance in mobile machines. Application: Material handling and conveyor systems in demanding facilities. Feature: Operating temperature range from -40 °C to 105 °C and 12-position layout. Business Impact: Ensures reliable operation across seasonal and process variations, reducing field failures. Application: Outdoor or high-ambient-temp environments and energy-intensive equipment. Feature: Plastic shell, shell size 14, and 84 mm length provide a compact footprint for space-constrained panel layouts. Business Impact: Enables denser wiring schemes without compromising performance. Application: Compact control cabinets and machine builds requiring Souriau UTSX compatibility.
Get a Quick Quote for a Eaton UTSX7JC1492SY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTSX7JC1492SY?
Enquire Now
FAQs
The UTSX7JC1492SY uses a 1/3 bayonet coupling with a jam nut receptacle and provides 12 crimp contacts (socket/female). It supports 12 cavities in a single receptacle layout, with a straight backshell. Mating cycles are rated at 250, ensuring dependable use in demanding automation environments.
Yes. It operates from -40 °C to 105 °C, and its IP68/69K sealing plus RoHS compliance make it suitable for harsh industrial environments, including washdowns and exposure to temperature extremes common in manufacturing and processing plants.
The connector features a straight backshell and jam nut receptacle, facilitating secure panel mounting in tight spaces. With an overall length of 84 mm and a 12-contact configuration, it fits compact control cabinets while maintaining reliable sealing and easy maintenance.
The UTSX7JC1492SY is RoHS compliant and IP68/69K rated, ensuring resistance to dust and water ingress in harsh environments. These features support regulatory and industry requirements for modern automated equipment and equipment used in regulated sectors.
Typical applications include industrial automation, robotics, packaging, conveyor systems, and material handling. Its compact 12-contact layout, sealing gland backshell, and Souriau UTSX series compatibility make it ideal for machines requiring robust, maintainable, and high-density connectivity in harsh environments.
