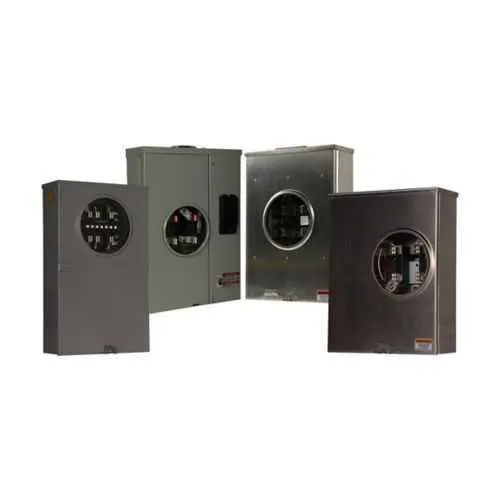

Eaton UTT5H52393TTCH Meter Socket - UL Listed 600V
Part Number: UTT5H52393TTCH
Quick Summary
The Eaton UTT5H52393TTCH meter socket provides reliable service entry for commercial and residential installations. It enables top- or bottom-fed configurations, minimizing field wiring errors and speeding up installation. UL Listed for 600 V operation reinforces safety and compliance in demanding service environments. With a 200 A rating, ringless, side-wired design and a lever bypass, it supports quick field service and future upgrades, reducing lifecycle costs for facilities. Designed to accommodate flexible conductor ranges and multi-position service, this meter socket helps electrical teams meet performance targets while controlling project costs.
Product Information
Extended Description
UTT5H52393TTCH Eaton: Eaton meter socket, Multi position commercial or resi service, 200A, Over/under, (2) Large hub opens, 1/0-500 kcmil, 5-jaw, 1-ph, #6-350 kcmil, Lever bypass, 2 ground conns (#14-#2 Cu), Quadplex, Side-wired, Ringless, 600 Vac, top to Bottom
Product Name
Eaton meter socket
Catalog Number
UTT5H52393TTCH
UPC
786685950532
Product Length/Depth
6 in
Product Height
23.56 in
Product Width
72.15 in
Product Weight
140 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Multiple position commercial or residential service
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Five-jaw
Phase
Single-phase
Ground
Quadplex ground
Line
(2) 1/0-500 kcmil
Load
#6-350 kcmil
Number of wires
Three-wire
Hub type
2 5 x 5 hub opening
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
5
Feature: 200 A, single-phase, five-jaw design with top- or bottom-feed capability. Business impact: Provides ample service capacity for modern loads while simplifying conduit routing in meter bases. Application: Ideal for multi-position commercial or residential service upgrades where utility interfaces and space constraints vary. Feature: Two large hub openings with a ringless, side-wired configuration. Business impact: Streamlines installation, reduces labor time, and enhances wiring safety in dense electrical rooms. Application: Suitable for new builds and retrofit projects across commercial and residential sectors. Feature: Wide conductor compatibility—line 2/1/0-500 kcmil; load #6-350 kcmil; three-wire. Business impact: Supports large feeders and flexible configurations, reducing kit inventory and on-site rework. Application: Essential for feeder upgrades and service reconfigurations. Feature: Grounding approach—quadplex ground with two ground connections (#14-#2 Cu) and lever bypass. Business impact: Improves fault protection and simplifies maintenance while meeting code requirements. Application: Critical in multi-tenant and utility-interfaced installations. Feature: Certifications and warranty—UL Listed; Eaton's warranty policy 25-000 (1 year from installation or 18 months from shipment). Business impact: Provides regulatory compliance confidence and long-term support, protecting asset lifecycle. Application: Widely used across commercial and residential service entries where reliability matters.
Get a Quick Quote for a Eaton UTT5H52393TTCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTT5H52393TTCH?
Enquire Now
FAQs
Installing the UTT5H52393TTCH involves selecting the appropriate feed orientation, mounting the unit in a compliant meter base, and connecting conductors to the top and bottom terminals. Use the five-jaw design to secure the line and load conductors within their respective ranges (line 2/1/0-500 kcmil; load #6-350 kcmil). Engage the lever bypass only after verifying proper grounding and insulation. The ringless, side-wired design simplifies wiring, and ensure UL Listed product placement per code. Always reference the Eaton specification sheet for exact torque values and wiring configuration guidance.
This meter socket provides a robust 200 A single-phase capacity with top- or bottom-feed versatility, accommodating large feeders and multi-position service. The 2 large hub openings, ringless design, and side-wired connections reduce installation complexity and improve safety in busy commercial environments. The 600 V rating and UL Listed certification ensure regulatory compliance, while the lever bypass supports fast maintenance and tenant-side service modifications—key for multi-tenant buildings and utility interfaces.
Yes, the UTT5H52393TTCH is UL Listed for 600 V operation, providing vetted safety and compliance assurances. The warranty follows Eaton policy 25-000, offering one year from the date of installation or eighteen months from the date of shipment, whichever occurs first. This warranty supports asset protection during the critical early life of the equipment and aligns with typical utility and contractor expectations for service-entry gear.
The device supports line conductors ranging from 2/1/0 to 500 kcmil and load conductors from #6 to 350 kcmil, in a three-wire configuration. It features quadplex grounding and two ground connections using copper conductors sized #14 to #2. Grounding is integrated with a ringless, side-wired setup for safer, easier maintenance. Ensure the chosen conductors meet local code requirements and torque specifications per the Eaton datasheet.
This meter socket is well-suited for commercial and multi-position residential service entries, especially where top- or bottom-fed configurations are needed. Its 200 A rating, five-jaw design, and 600 V capability support a wide range of feeders and tenant scenarios. The combination of safety features, ease of installation, and robust grounding makes it a strong choice for new constructions, renovations, and upgrades in commercial buildings and multi-tenant facilities.
