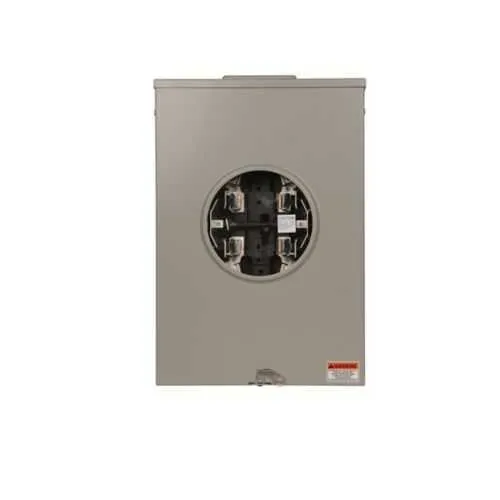

Eaton meter socket UTTE4213UCH - UL Listed 600V
Part Number: UTTE4213UCH
Quick Summary
Eaton meter socket UTTE4213UCH provides reliable service connections up to 200A in commercial or residential settings. Installing metering equipment can be challenging when wiring sizes, grounding schemes, and feed orientation must meet code and space constraints. UL Listed certification supports code compliance, and Ameren-approved catalog notes reflect utility compatibility for field deployment. This meter socket combines robust construction with flexible top/bottom feed and a lever bypass to reduce downtime, while supporting #6–350 kcmil conductors. The result is safer, faster installations and predictable performance for commercial metering and residential service projects.
Product Information
Extended Description
UTTE4213UCH Eaton: Eaton meter socket, 1-pos commercial or resi service, 200A, Over/under, 5x5 inch hub cover plate, #6-350 kcmil, 4-jaw, 1-ph, #6-350 kcmil, Lever bypass, Two grounding conns (#14-#2 Cu), Quadplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTTE4213UCH
UPC
786685351322
Product Length/Depth
4.94 in
Product Height
19 in
Product Width
13 in
Product Weight
25 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Ameren, Union Electric, Central Illinois Public approved
Type
Single-position commercial or residential service
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Four-jaw
Phase
Single-phase
Ground
Quadplex
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Three-wire
Hub type
5 x 5 hub cover plate
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTTE4213UCH
Feature → Business Impact → Application: The UTTE4213UCH supports 200A service and a 600V rating, translating to broader installation options and increased system capacity for both commercial and residential metering projects. Application: Ideal for service entrances in multifamily buildings or light commercial facilities where reliability and code compliance are critical. Feature → Business Impact → Application: Four-jaw, 1-socket design with a 3-wire configuration provides a secure connection, reducing contact resistance and outage risk. Application: Suitable for standard utility-ready metering enclosures with predictable performance. Feature → Business Impact → Application: Top/bottom feed and a 5x5 hub cover plate enable flexible wiring layouts; #6–350 kcmil conductors accommodate large feeders. Application: Retrofit and new installs in congested spaces where wiring feasibility matters. Feature → Business Impact → Application: Ringless design minimizes tamper potential and ground fault pathways, enhancing safety. Application: Environments requiring robust service security and streamlined compliance. Feature → Business Impact → Application: Lever bypass simplifies maintenance by isolating the meter without disconnecting feeders, reducing downtime and field labor. Application: Routine testing and servicing in commercial sites. Feature → Business Impact → Application: Quadplex grounding and three-wire configuration improve grounding performance and fault management. Application: Critical for multi-wire circuits in complex electrical rooms. Feature → Business Impact → Application: UL Listed certification and Ameren-approval notes provide utility-adoption confidence and streamlined procurement. Application: Projects targeting utility-approved equipment with predictable procurement timelines. The unit’s 13 in width, 19 in height, and 4.94 in depth, plus a 25 lb weight, offer a compact yet sturdy footprint compatible with standard meter canopies and enclosures. This combination supports fast installation, reduced field adjustments, and improved total cost of ownership for electrical contractors and facility managers.
Get a Quick Quote for a Eaton UTTE4213UCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTTE4213UCH?
Enquire Now
FAQs
The UTTE4213UCH requires a compatible meter enclosure with 4-jaw termination, a top or bottom feed arrangement, and a 3-wire, single-phase configuration. Plan for #6–350 kcmil copper conductors, ensure proper grounding, and verify UL Listed status for utility-scale deployments. Its 13 in width, 19 in height, and 4.94 in depth fit standard canopies while providing ample access for connectors and bypass operations.
This meter socket accepts #6–350 kcmil copper conductors for both line and load connections. It is designed for 1-ph, 3-wire service with a four-jaw interface and a quadplex grounding scheme, ensuring a secure, low-resistance connection suitable for 200A service with 600V rating.
Yes, the UTTE4213UCH carries UL Listed certification, aligning with standard electrical safety requirements. Catalog notes indicate Ameren, Union Electric, and Central Illinois Public approvals, reflecting utility compatibility for field deployments and simplifying procurement and compliance in supported regions.
The lever bypass allows service isolation for meter testing or maintenance without disconnecting feeders, shortening downtime and enabling safer, faster field servicing. This feature is particularly valuable in maintenance windows and emergency scenarios where minimizing interruption is essential.
The UTTE4213UCH measures 13 in wide, 19 in high, and 4.94 in deep, with a weight of 25 lb. These dimensions fit typical meter canopies and field cabinets, offering a compact yet sturdy footprint that simplifies mounting, wiring access, and future serviceability.
